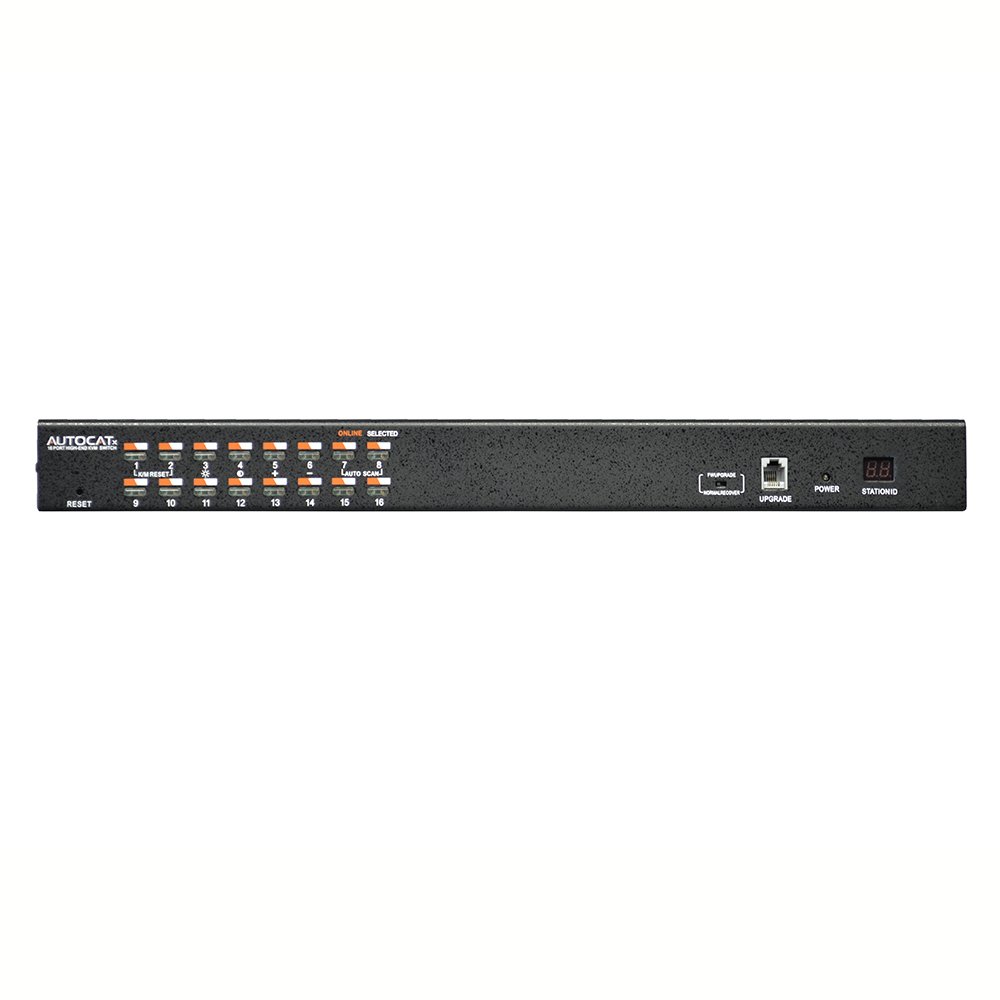

*KC2116 : Kinan Rack Mount 16 port USB CAT5 KVM Switch

คุณสมบัติสินค้า:

หมวดหมู่ : KINAN Rack Mount KVM Switches

แบรนด์ : KINAN

Share

คุณสมบัติย่อ




Hardware Features

  • 1U design-Occupies only 1U of the rack space
  • Standard RJ-45 connector-Connect to a server or KVM switch via a standard RJ-45 connector with CAT 5e/6 cable
  • Fit for standard 19” rack mounting
  • Support computers with USB keyboard and mouse

Management
  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode--operations simultaneously performed on all selected computers
  • Hot pluggable --add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server

High Resolution
  • Resolution is up to 1920x1080@60Hz


Cascading Connection
  • By cascading up to another 31 switches, as many as 512 servers can be controlled from a single console (Compatible Kinan Rack KVM Switches: KC2108, KC2132)


Security
  • Two level password security--only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

Wide Compatibility
  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.


ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน







ในชุดอุปกรณ์ประกอบไปด้วย

  • 1x KC2116 Cat5 KVM Switch
  • 1x Power Cord (Regional)
  • 2x Mounting Rails
  • 16x USB KVM dongle (CM-1200U)
  • 1x Quick Start Guide
  • 1x Cat5e Shield Network Cable
  • 1x Ground Lead
