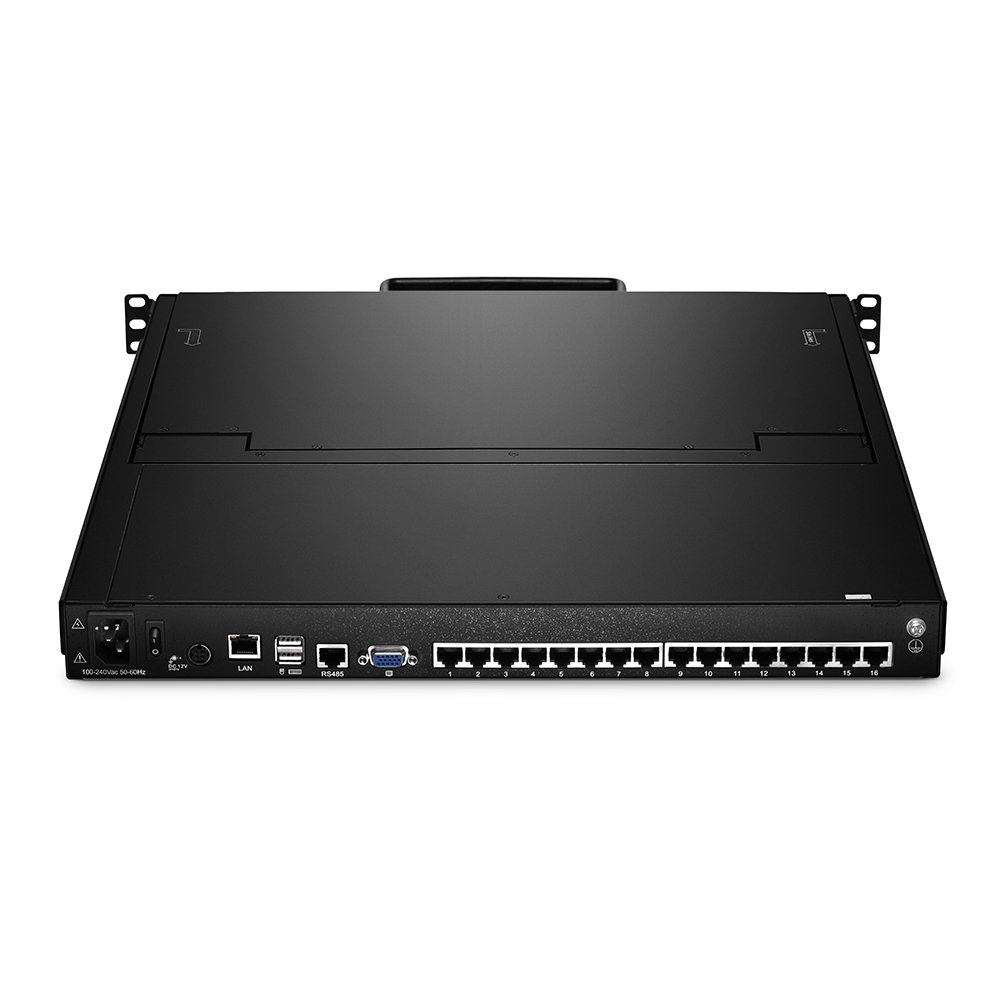

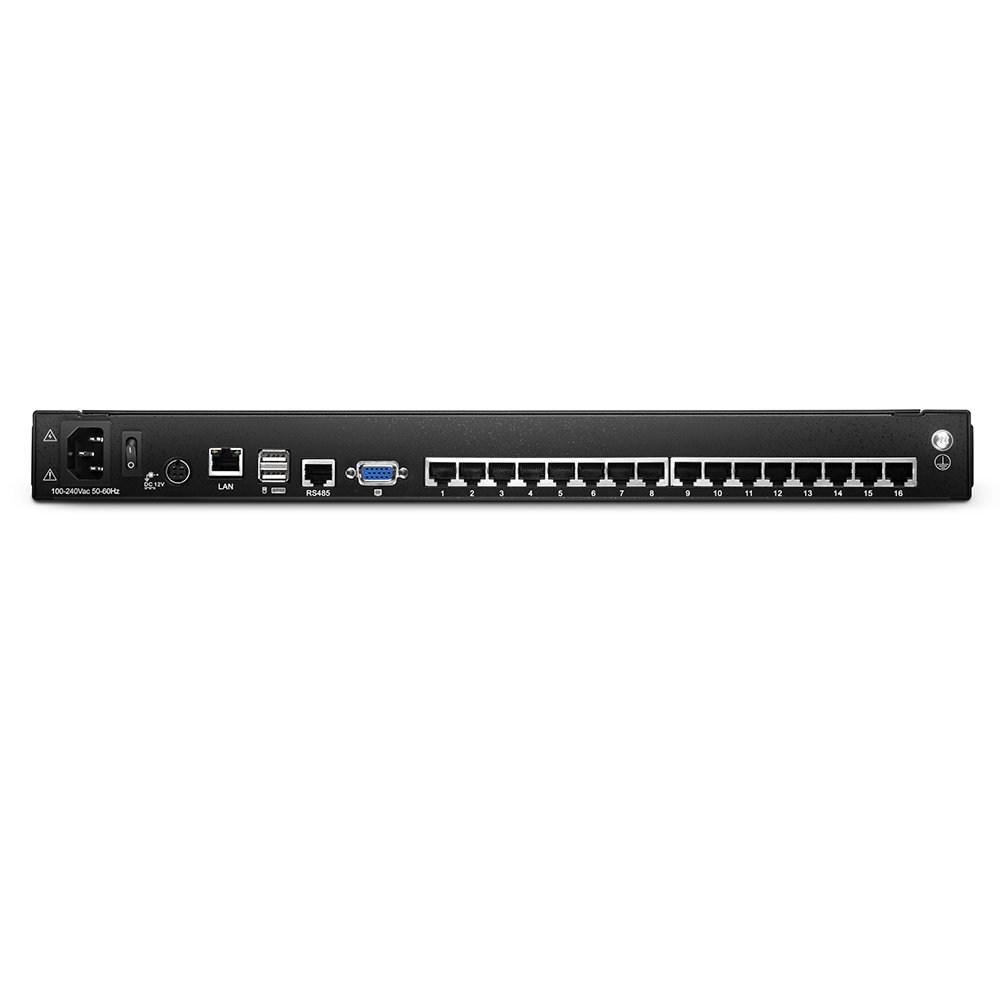

*HT2716 : Kinan 17.3” 16 Port CAT5 LCD KVM over IP Switch 1-Local / 1-Remote Access

คุณสมบัติสินค้า:

หมวดหมู่ : KINAN KVM over IP Switches

แบรนด์ : KINAN

Share

คุณสมบัติย่อ



Hardware Features

  • Integrated KVM console with 17.3” LCD monitor, keyboard/touchpad in a 1U height console
  • Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • External console port – provides an external VGA, keyboard and mouse port to manage the LCD KVM Switch from an external console
  • One bus for IP KVM remote access

Local Console
  • Controls up to 16 computers from a single console
  • Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
  • Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
  • Support servers with VGA/DVI/HDMI/DP port
  • Multiplatform client support - Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
  • Local Console, Browser, and AP GUIs offer a unified management interface
  • Local resolution is up to 1920 x 1080 60Hz
  • Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements
  • Video synchronization with local console - EDID information for local console display can be stored in the host module for video resolution optimization
  • Keyboard and mouse emulation to ensure the normal booting
  • Auto scan feature for monitoring user-selected computer
  • Hot pluggable--add or remove computers without having to power down the switch

Remote Console
  • Adaptive 10 / 100 / 1000 Mbps network
  • WEB browser-based remote management
  • Resolution for remote console is up to 1920x1080 60Hz
  • BIOS-level access
  • Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
  • Full screen or scalable video display
  • Remote users and local users can control the same server/computer synchronously
  • Support AES / DES / 3DES encryption
  • Support audit function-allows the administrator to audit the device through the system log and operation log
  • Exit Macros support
  • Configurable user and group permissions for server access and control
  • Support strong password
  • Support firmware upgrade


ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน
ในชุดอุปกรณ์ประกอบไปด้วย

  • 1x HT2716 IP KVM Console
  • 1x Power Cord (Regional)
  • 1x Quick Start Guide
  • 1x User Manual
  • 2x Mounting Rails
  • 16x USB KVM Adapter (KCM-1200U)
  • 1x Cat5 shield network cable
  • 1x Ground Lead

ModelHT2716
Computer ConnectionsDirect16
Max16
Port SelectionKeyboard, MouseButton, UI, Web, Hotkey
LCD MonitorModelFHD TFT
View Area17.3"
Optimum Resolution1920×1080@60Hz
Color262K
Brightness300cd/m² (T y p)
Contrast Ratio800: 1(T y p)
Pixel Pitch(mm)0.1989(H) × 0.1989(W)
MouseX/Y Resolution>1000 points / inch, (40 points/mm)
Scroll WheelSupports Scroll Wheel function
Keyboard99 keys (82 keyboard + 17 number pad)
RemoteRemote ControlKVM Control (A9ctiveX)
ManagementWeb
SecurityDES Encrypted
Resolution1920×1080@60Hz
Power Input100V- 240Vac, 50-60Hz, <1.5A
Power Consumption25W
Operating Temperature0 — 50 ℃
Store Temperature-20 —60 ℃
Humidity0—80% RH, non-condensing
Net Weight11.7 kg
Product Dimension (W × D × H)448mm×560mm×42.5mm
Package Dimension (W × D × H)765mm×615mm×185mm
