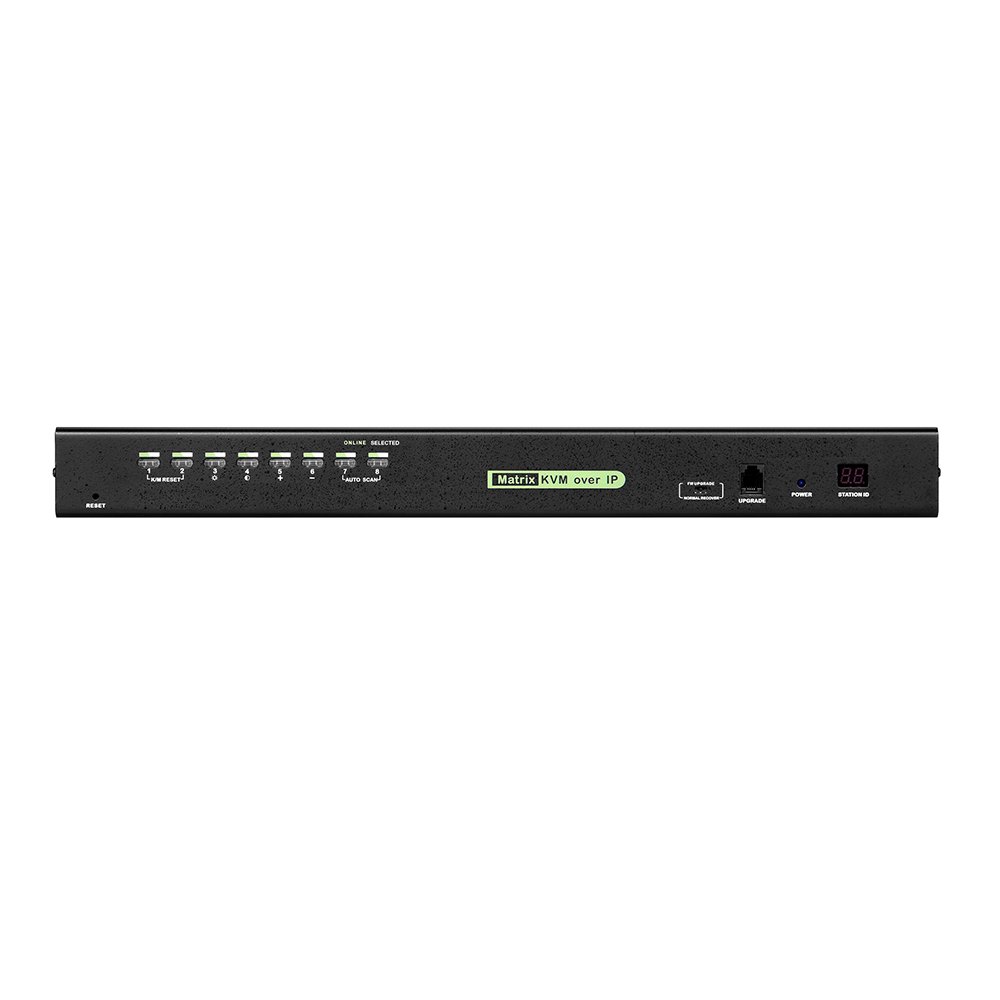

*HT1108 : Kinan 1-Local / 1-Remote Access 8 Port CAT5 KVM over IP Switch
คุณสมบัติสินค้า:
หมวดหมู่ : KINAN , KVM over IP Switches ,
แบรนด์ : KINAN
รายละเอียดสินค้า
Specifications
Datasheet / Downloads
คุณสมบัติย่อ
Hardware Features
- Rack-mountable in 1U system rack
- Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
- External console port – provides an external VGA, keyboard and mouse port to manage the IP KVM Switch from an external console
- One bus for IP KVM remote access
- Controls up to 8 computers from a single console
- Support 1 local user and 1 remote user, port share mode allows local and remote users to gain access to a server simultaneously
- Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
- Support servers with VGA/DVI/HDMI/DP port
- Multiplatform client support - Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
- Local Console, Browser, and AP GUIs offer a unified management interface
- Local resolution is up to 1920x1080 60Hz
- Support mouse synchronization mode-automatically synchronizes the local and remote mouse movements
- Video synchronization with local console - EDID information for local console display can be stored in the host module for video resolution optimization
- Keyboard and mouse emulation to ensure the normal booting
- Auto scan feature for monitoring user-selected computer
- Hot pluggable--add or remove computers without having to power down the switch
Remote Console
- Adaptive 10 / 100 / 1000 Mbps network
- WEB browser-based remote management
- Resolution for remote console is up to 1920x1080 60Hz
- BIOS-level access
- Video quality and video tolerance can be adjusted to optimize data transfer speed, data transfer speed is up to 30 FPS
- Full screen or scalable video display
- Remote users and local users can control the same server/computer synchronously
- Support AES / DES / 3DES encryption
- Support audit function-allows the administrator to audit the device through the system log and operation log
- Exit Macros support
- Configurable user and group permissions for server access and control
- Support strong password
- Support firmware upgrade
ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน
ในชุดอุปกรณ์ประกอบไปด้วย
- 1x HT1108 KVM over IP Switch
- 1x Power Cord (Regional)
- 1x Quick Start Guide
- 1x User Manual
- 2x Mounting Rails
- 8x USB KVM Adapter
- 1x Cat5 shield network cable
- 1x Ground Lead
| Model | HT1108 | ||
| Computer Connection | 8 | ||
| Port selection | 8 | ||
| Port selection | Pushbutton, OSD menu, Web, hotkey | ||
| Connector | Console | Keyboard Mouse | 2x USB TYPE A |
| Monitor | 1-HDB-15 Female(blue) | ||
| KVM Port (RJ-45) | 8 | ||
| Upgrading switch | 1x RJ11 Female | ||
| Power | 3-Prong AC socket | ||
| Switch | Port Selection | 8 | |
| Reset | 1x touch-button | ||
| Upgrading switch | 1x toggle switch | ||
| Power | 1x rocker switch | ||
| LEDs | Online (Green) | 8 | |
| Selected (Orange) | 8 | ||
| Power | 1(blue) | ||
| Cascade display | 2x 7- Segment (orange) | ||
| Remote | Remote control | KVM control (ActiveX control) | |
| Management way | Web | ||
| Security | DES encryption | ||
| Resolution | 1920×1080@60Hz | ||
| I/R Value | 100V-240Vac, 50-60Hz, <1.5A | ||
| Power Consumption | 8W | ||
| Environment Requirements | Operating Temperature | 0 — 50 ℃ | |
| Store Temperature | -20— 60 ℃ | ||
| Humidity | 0—80%RH, Non-condensing | ||
| Physical Features | Material | Metal | |
| Weight | 2.9kg | ||
| Dimension | 433x171x44.5mm | ||
