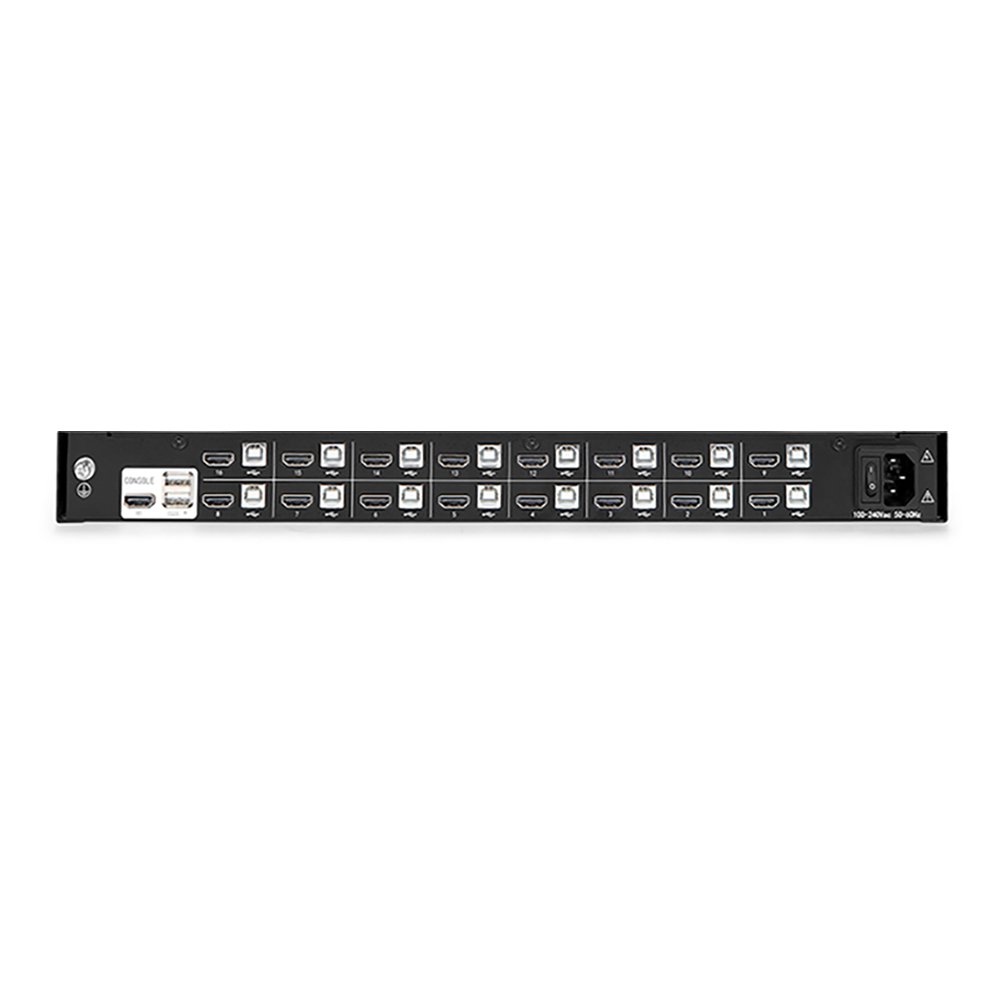

LH2716 : Kinan 16 Port USB HDMI 17” LCD KVM Console

คุณสมบัติสินค้า:

[ LH2716 ] รีวิว จำหน่าย ราคา Kinan รุ่น LH2716 คือ 17” LCD KVM Console ที่มี Port HDMI สำหรับใช้เชื่อมต่อไปยังเครื่องปลายทางได้จำนวน 16 Port

แบรนด์ : KINAN

Share

คุณสมบัติย่อ

LH2716 : Kinan 16 Port USB HDMI 17” LCD KVM Console คืออุปกรณ์ KVM (Keyboard, Video, Mouse) ที่มีความสามารถในการควบคุมและเชื่อมต่อคอมพิวเตอร์ได้ถึง 16 เครื่องผ่านทางเครื่องมือ KVM แบบ USB HDMI ที่ติดตั้งจอ LCD ขนาด 17 นิ้ว เพื่อให้ผู้ใช้งานสามารถตรวจสอบและควบคุมคอมพิวเตอร์ได้ในที่เดียวกัน

อุปกรณ์นี้มีความสามารถที่จะเชื่อมต่อกับคอมพิวเตอร์ผ่านทางสาย HDMI และ USB ซึ่งทำให้ผู้ใช้สามารถเชื่อมต่อและควบคุมการทำงานของคอมพิวเตอร์ได้อย่างง่ายดาย อีกทั้งยังมีคุณสมบัติในการแบ่งแยกการใช้งานต่าง ๆ ของคอมพิวเตอร์ทั้ง 16 เครื่องด้วยกัน ทำให้ผู้ใช้งานสามารถควบคุมคอมพิวเตอร์หลายเครื่องได้อย่างมีประสิทธิภาพและสะดวกสบาย  โดยไม่ต้องเสียเวลาในการเปลี่ยนสายต่อคอมพิวเตอร์แต่ละเครื่องอีกต่อไป


Features

  • Integrated keyboard monitor mouse switch with 17’’ rack mount monitor and keyboard/touchpad and 16 port kvm in a 1U height console
  • Standard HDMI connection-Connect to a server or computer via standard HDMI connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB keyboard and mouse

Management
  • Integrated keyboard monitor mouse switch with 17’’ rack mount monitor and keyboard/touchpad and 16 port kvm in a 1U height console
  • Standard HDMI connection-Connect to a server or computer via standard HDMI connectors
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 keyboard and mouse

High Resolution
  • 17” TFT LCD monitor with highlight, high definition and high resolution
  • Resolution is up to 1280x 1024 60Hz

Security
  • Two level password security--only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad
  • Touchpad with scroll wheel - Eliminates the need for a separate, external mouse

Keyboard
  • Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
  • Full size 99 keys keyboard with integrated number pad


Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.


ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน



ในชุดอุปกรณ์ประกอบไปด้วย

  • 1x LH2716 HDMI KVM Console
  • 1x Power Cord (Regional)
  • 2x Mounting Rails
  • 16x KVM Cable (CH-1803A; HDMI, USB; 1.8m/6ft)
  • 1x Quick Start Guide
Model
LH2716
Computer connections
Direct
16
Max
16
Port emulation
Keyboard, mouse
USB
LCD monitor
LCD model
SXGA TFT
View area
17 "
Optimum resolution
1280×1024@60Hz
Display color
16.7 M
Brightness
250cd/m²( T y p )
Contrast ratio
1000: 1 (T y p)
Pixel pitch(mm)
0.264(H) × 0.264(W)
Mouse
X/Y resolution
>1000 points /inch, (40 points/mm)
Roll wheelSupports scroll wheel function
Keyboard
99 keys
(82 keys main keyboard +17 independent small numeric keyboard)
Port selection
Front panel pushbuttons, hotkeys, OSD menu
Input power
100V- 240Vac, 50-60Hz, <1.5A
Power consumption
24W
Operating temperature
0—50 ℃
Store temperature
-20—60 ℃
Humidity
0—80% RH, non-condensing
Net weight
13 kg
Product dimension (W × D × H)
448mm×581mm×42.5mm
Package dimension (W × D × H)
765mm×615mm×185mm
Optional power input
-36V~ -72V DC
