คุณสมบัติย่อ

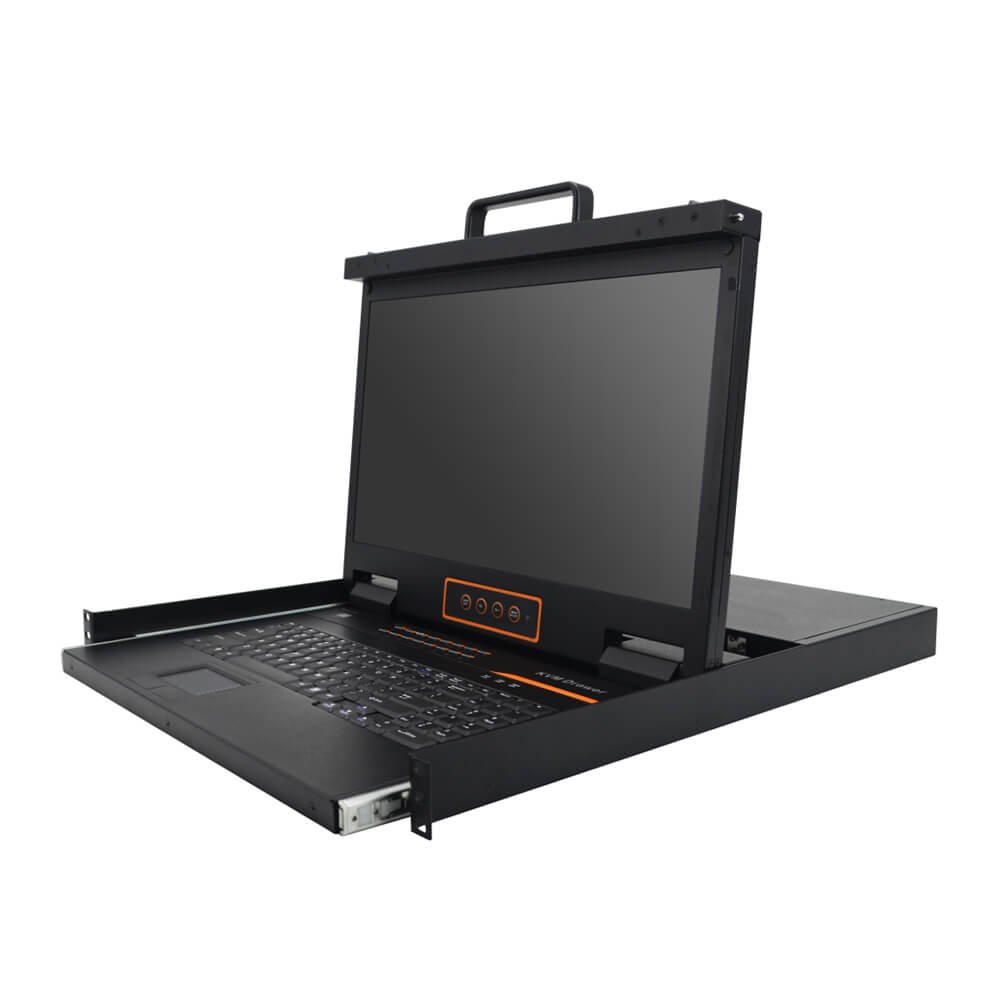

KINAN KVM SWITCH รุ่น XW1816: สวิตช์ KVM จอ LCD 18.5 นิ้ว ขนาดกะทัดรัด พอร์ตจำนวน 16 ช่อง มาตรฐาน VGA
KINAN KVM SWITCH รุ่น XW1816 เป็นอุปกรณ์ที่ช่วยให้คุณควบคุมหลายเครื่องคอมพิวเตอร์พร้อมกันด้วยจอ LCD ขนาด 18.5 นิ้ว และมาตรฐานการแสดงผล VGA มีขนาดกะทัดรัดทำให้สามารถติดตั้งในพื้นที่ที่จำกัดได้อย่างง่ายดาย รองรับการเชื่อมต่อกับเครื่องคอมพิวเตอร์ 16 เครื่อง ทำให้การจัดการเครื่องคอมพิวเตอร์มีประสิทธิภาพและรวดเร็วขึ้น สามารถนำไปใช้ในห้องปฏิบัติการ หรือสถานที่ต่างๆ ที่ต้องการควบคุมหลายเครื่องคอมพิวเตอร์แบบครั้งเดียว
Hardware Features

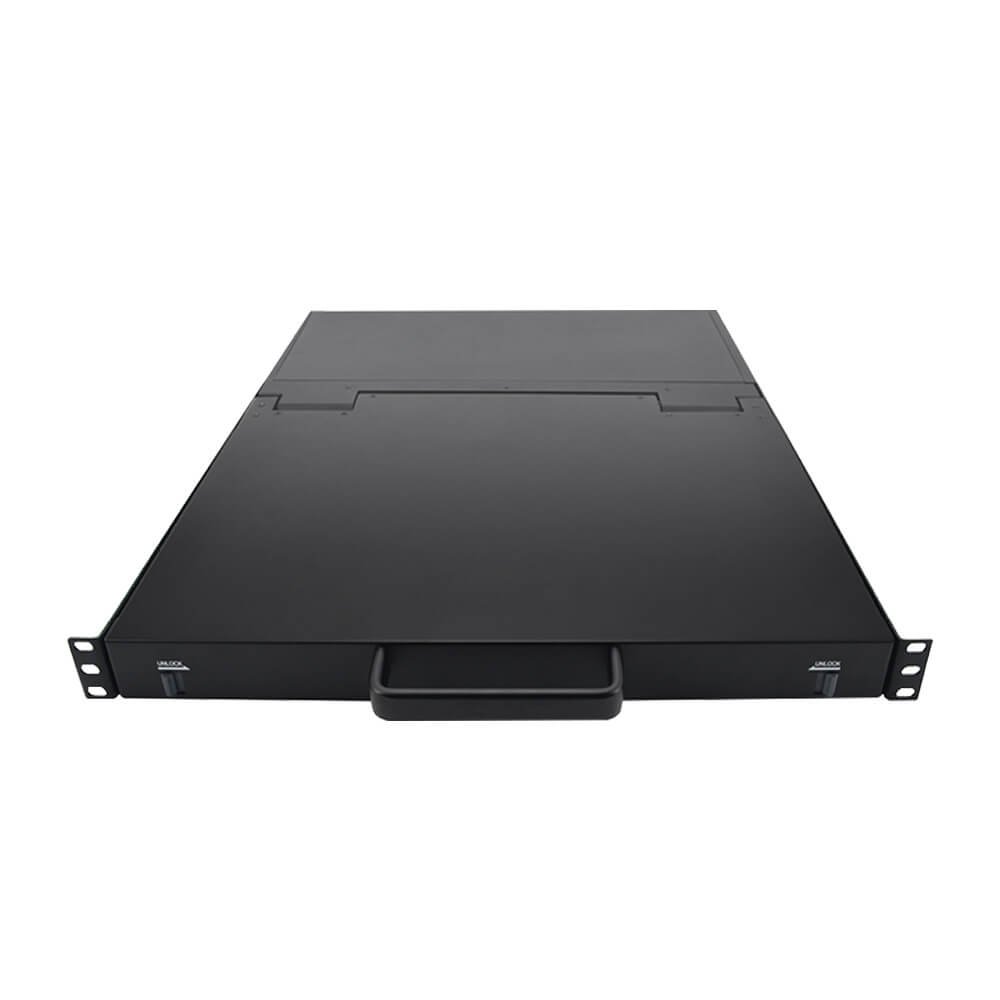

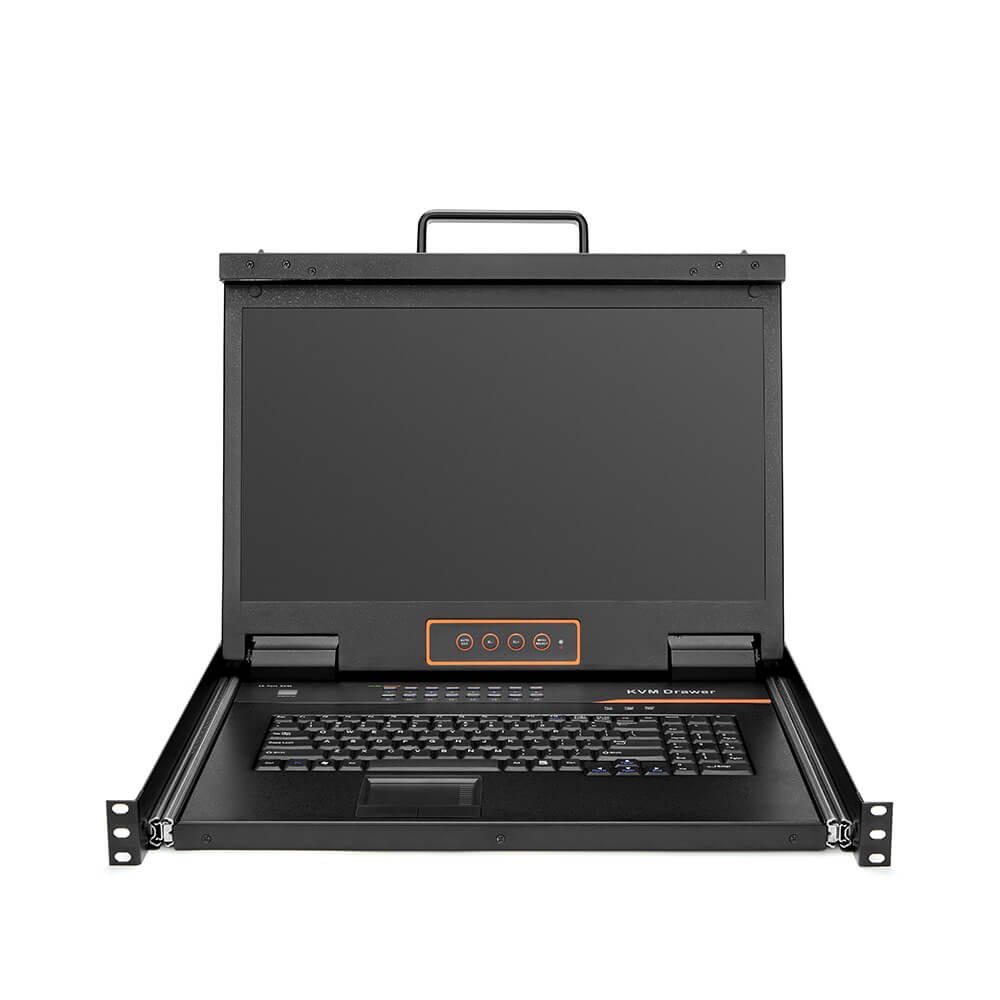

- Integrated rackmount console drawer with 18.5 LCD monitor, keyboard/touchpad and 16 port KVM module in a 1U height console

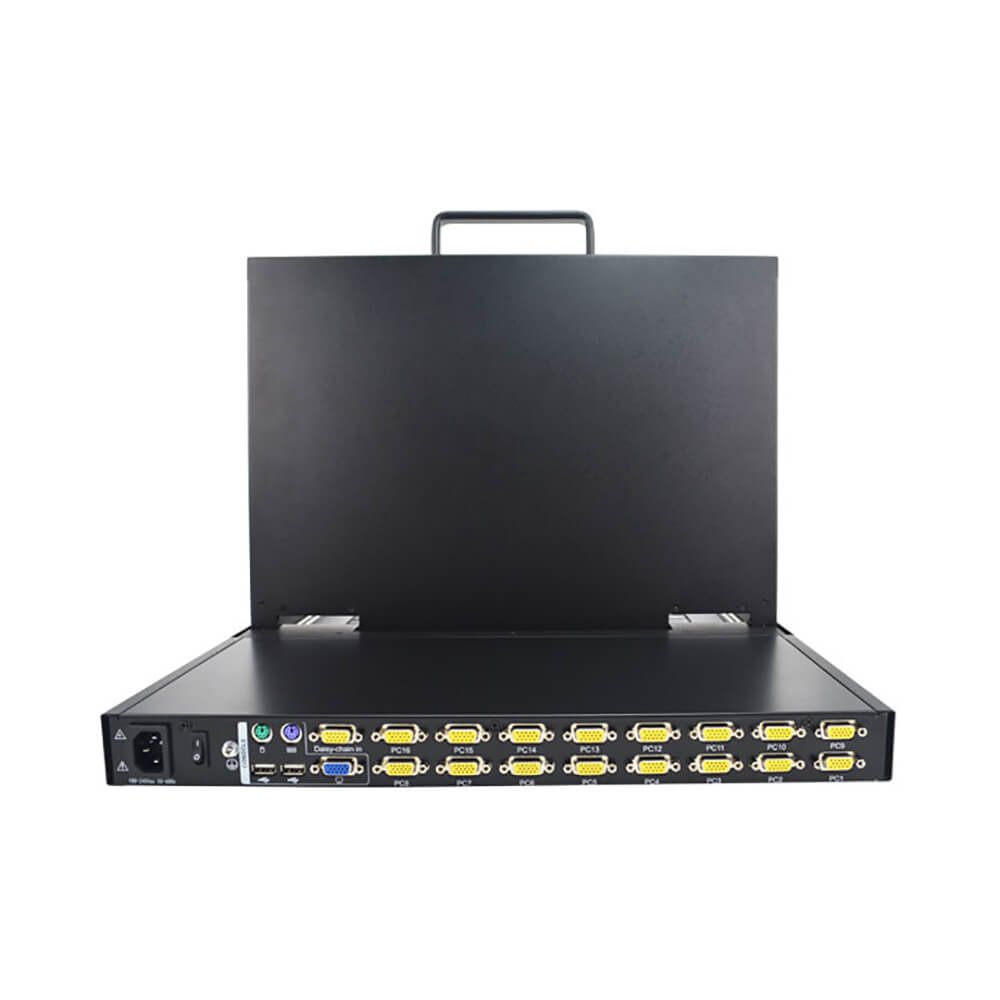

- Standard VGA connection-Connect to a server or computer via standard VGA connectors
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Support computers with USB and PS/2 keyboard and mouse
Management- Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
- Auto scan feature for monitoring user-selected computer
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, and menu
High Resolution- 18.5 TFT FHD display supports highlight, high definition and high resolution
- Superior video quality is up to 1920 x 1080 @60Hz
Daisy-Chain Connection- By daisy-chaining up to another 31 switches, as many as 512 servers can be controlled from a single console (Compatible Kinan Rack KVM Switches: XM0108, XM0116, XU0108, XU0116)
Security- Two level password security--only authorized users view and control computers
- Supports one administrator and four user accounts with a separate profile for each
High Performance Touchpad- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
Keyboard- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad
Wide Compatibility- Multiplatform Support-Compatible with Windows, Linux, Mac and Sun
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน

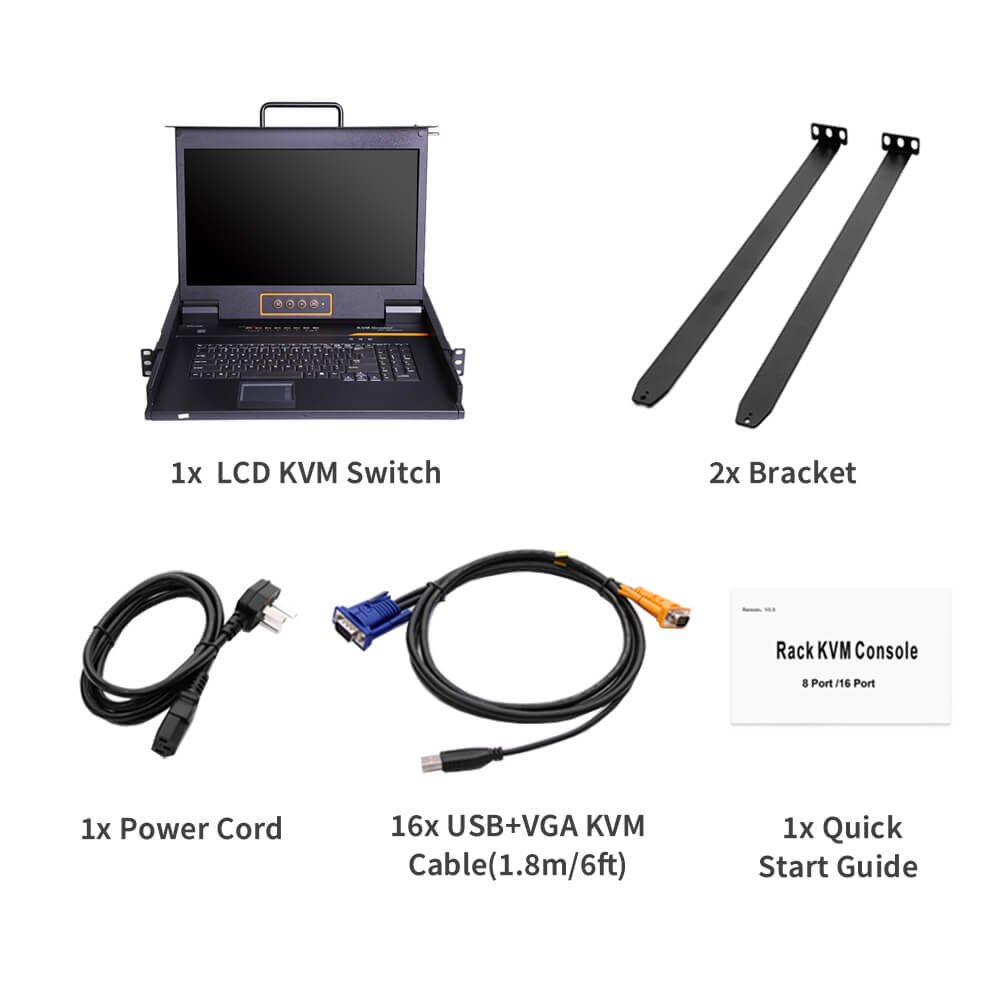

ในชุดอุปกรณ์ประกอบไปด้วย
- 1x XW1816 short depth LCD KVM Switch
- 1x Power Cord (Regional)
- 2x Mounting Rails
- 16x 1.8m VGA USB KVM Cable (Model: CH-1802U)
- 1x Quick Start Guide
Model | XW1816 |
Computer connections | Direct | 16 |
Max | 512 |
Port emulation | Keyboard, mouse | USB |
LCD monitor | LCD model | FHD TFT |
View area | 18.47″ |
Optimum resolution | 1920×1080@60Hz |
Display color | 16.7 M |
Brightness | 250cd/m² (T y p) |
Contrast ratio | 1000: 1 (T y p) |
Pixel pitch(mm) | 0.213(H) × 0.213(W) |
Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) |
Roll wheel | Supports scroll wheel function |
Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
Port selection | pushbuttons, hotkeys, OSD menu |
Input power | 100V- 240Vac, 50-60Hz, <1.5A |
Power consumption | 29W |
Mounting distance | 686-770mm (L=262mm) Mounting bracket can be customized for other mounting distance |
Operating temperature | 0—50 ℃ |
Store temperature | -20—60 ℃ |
Humidity | 0—80% RH, non-condensing |
Net weight | 12kg |
Product dimension (W × D × H) | 448mm×560mm×42.5mm |
Package dimension (W × D × H) | 765mm×615mm×185mm |
