SW1701 : Kinan 1U 17” FHD Rack Mount LCD Console

คุณสมบัติสินค้า:

[ SW1701 ] รีวิว จำหน่าย ราคา Kinan รุ่น SW1701 คือ 17” FHD LCD KVM Console ที่มี 1 Port VGA ใช้เชื่อมต่อไปยังเครื่องปลายทาง ติดตั้งบน Rackmount 1U

หมวดหมู่ : KINAN LCD KVM Consoles

แบรนด์ : KINAN

Share

คุณสมบัติย่อ

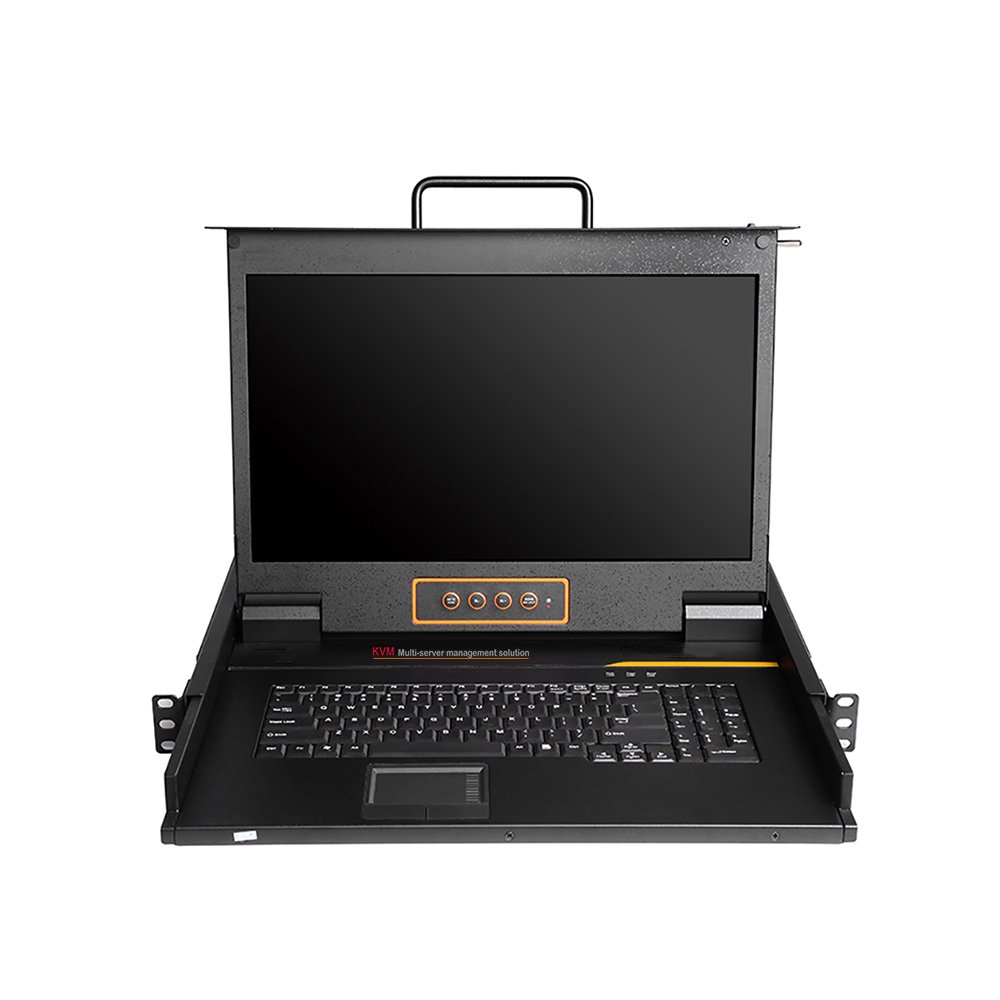

KINAN KVM SWITCH รุ่น SW1701 เป็น LCD Console ขนาด 17” FHD ติดตั้งบน Rackmount 1U เพื่อควบคุมเซิร์ฟเวอร์ และอุปกรณ์ต่างๆ ได้อย่างสะดวกสบาย มาพร้อมกับคุณสมบัติการเชื่อมต่อทาง VGA, HDMI และ DisplayPort ทำให้ใช้งานได้หลากหลายอุปกรณ์ มีคีย์บอร์ดและ Touchpad ให้ควบคุมการใช้งานด้วย


Hardware Features

  • Integrated KVM Console with 17.3 LCD monitor, keyboard/touchpad
  • Standard VGA connection-Connect to a server or computer via standard VGA connector
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 keyboard and mouse
  • Internal power supply

High Resolution
  • 17.3 TFT LCD rack mount kvm with monitor supports highlight, high definition and high resolution
  • Support input video resolutions up to 1920 x 1080 @60Hz

High Performance Touchpad
  • Touchpad with scroll wheel - Eliminates the need for a separate, external mouse


Keyboard
  • Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
  • Full size 99 keys keyboard with integrated number pad


Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Mac and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน


ในชุดอุปกรณ์ประกอบไปด้วย

  • 1x SW1701 LCD Console
  • 1x Power Cord (Regional)
  • 2x Mounting Rails
  • 1x KVM Cable (CH-1802U; VGA, USB; 1.8m/6ft)
  • 1x Quick Start Guide



Model
SW1701
Computer ConnectionsDirect1
Max1
Port emulationKeyboard, mousePS/2, USB
LCD monitorLCD modelFHD TFT
View area17.3 "
Optimum resolution1920×1080@60Hz
Display color262K
Brightness300cd/m² (T y p)
Contrast ratio800: 1 (T y p)
Pixel pitch(mm)0.1989(H) × 0.1989(W)
MouseX/Y resolution>1000 points / inch, (40 points/mm)
Touchpad with Scroll wheelSupport scroll wheel function
Keyboard99 keys
(82 keys main keyboard + 17 independent small numeric keyboard)
Input power100V-240Vac, 50-60Hz, <1.5A
Power consumption11W
Operating temperature0— 50 ℃
Store temperature-20 — 60 ℃
Humidity0~80% RH, non-condensing
Net weight10.5 kg
Product dimension (W × D × H)448mm×560mm×42.5mm
Package dimension (W × D × H)765mm×615mm×185mm
Optional power input-36V—-72V DC
Optional power input20-30VDC
