คุณสมบัติย่อ

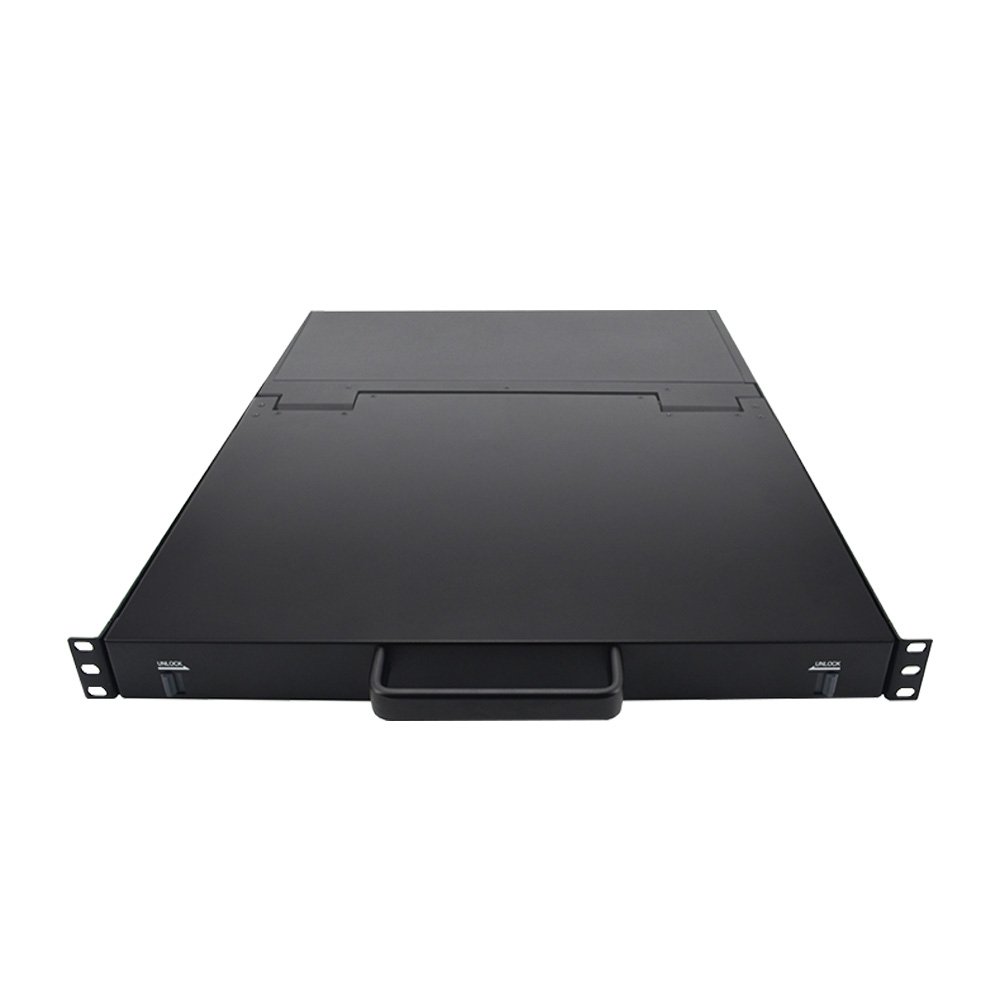

KINAN KVM SWITCH รุ่น LD1808: สวิตช์ KVM ขนาด 18.5" FHD Widescreen 8 พอร์ต DVI ที่มีความละเอียดสูง ให้การควบคุมอุปกรณ์ที่มีการเชื่อมต่อ DVI ได้อย่างสะดวกและรวดเร็ว
Features
- Integrated 18.5” LCD monitor with built in kvm, keyboard/touchpad and 8 port LCD console in a 1U height console
- Standard DVI connection-Connect to a server or computer via standard DVI connectors
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Support computers with USB keyboard and mouse
Management- Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
- Auto scan feature for monitoring user-selected computer
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator
Security
- Two level password security--only authorized users view and control computers
- Supports one administrator and four user accounts with a separate profile for each
High Performance Touchpad- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
Keyboard- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad
High Resolution- 18.5" FHD LCD monitor with highlight, high definition and high resolution
- Resolution is up to 1920x 1080 @60Hz
Wide Compatibility- Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน

ในชุดอุปกรณ์ประกอบไปด้วย
- 1x LD1808 LCD KVM Switch
- 1x Power Cord (Regional)
- 2x Mounting Rails
- 8x KVM Cable (CH-1803D; DVI, USB; 1.8m/6ft)
- 1x Quick Start Guide
Model | LD1808
|
Computer connections | Direct | 8 |
Max | 8 |
Port emulation | Keyboard, mouse | USB |
LCD monitor | LCD model | FHD TFT |
View area | 18.47″ |
Optimum resolution | 1920×1080@60Hz |
Display color | 16.7 M |
Brightness | 250cd/m²( T y p ) |
Contrast ratio | 1000 : 1 ( T y p ) |
Pixel pitch(mm) | 0.213(H) × 0.213(W) |
Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) |
Roll wheel | Supports scroll wheel function |
Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
Port selection | pushbuttons, hotkeys, OSD menu |
Input power | 100V- 240Vac, 50-60Hz, <1.5A |
Power consumption | 28W |
Mounting distance | 686-770mm (L=262mm) Mounting bracket can be customized for other mounting distance |
Operating temperature | 0—50 ℃ |
Store temperature | -20—60 ℃ |
Humidity | 0—80% RH, non-condensing |
Net weight | 11.8kg |
Product dimension (W × D × H) | 448mm×560mm×42.5mm |
Package dimension (W × D × H) | 765mm×615mm×185mm |
