คุณสมบัติย่อ

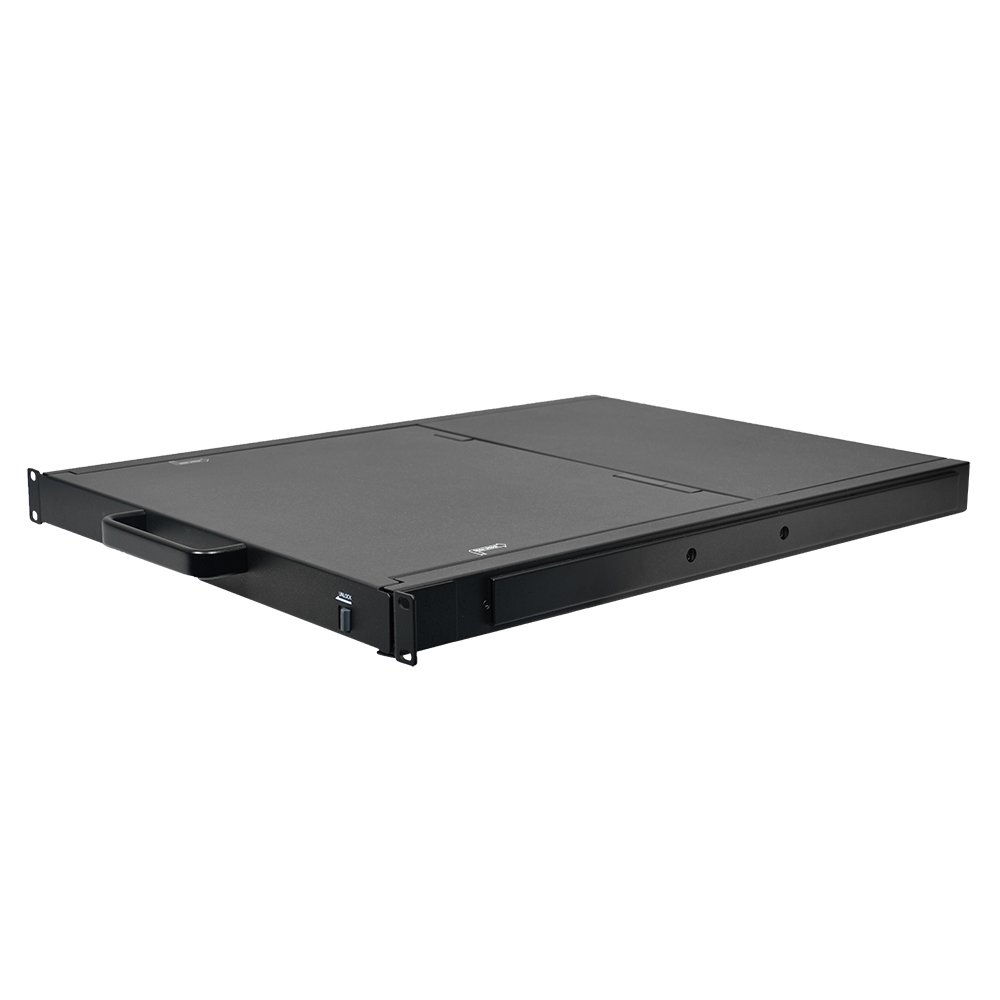

KINAN KVM SWITCH รุ่น LC1724 เป็น Single Rail 17” 24 Port CAT5 LCD KVM Switch ที่ช่วยควบคุมคอมพิวเตอร์หลายเครื่องผ่านเครือข่าย CAT5 ด้วย LCD ขนาด 17" และมี 24 พอร์ต ใช้งานง่ายและประหยัดพื้นที่ด้วยการออกแบบ Single Rail ขนาด 1U สำหรับใช้งานใน Data Center หรือ Server Room อย่างมีประสิทธิภาพและประหยัดพื้นที่
Hardware Features
- Integrated kvm switch with lcd monitor, keyboard/touchpad and 24 port kvm in a 1U height console
- Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Support computers with USB keyboard and mouse
Management
- Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
- Auto scan feature for monitoring user-selected computer
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator
High Resolution- 17” TFT LCD monitor with highlight, high definition and high resolution
- Resolution is up to 1280 x 1024 @60Hz
Cascading Connection- By cascading up to another 31 switches, as many as 768 servers can be controlled from a single console (Compatible Kinan Rack KVM Switches: KC2108, KC2116, KC2132)
Security- Two level password security--only authorized users view and control computers
- Supports one administrator and four user accounts with a separate profile for each
High Performance Touchpad- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
Keyboard
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
- Full size 99 keys keyboard with integrated number pad
Wide Compatibility- Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
- Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน
ในชุดอุปกรณ์ประกอบไปด้วย
- 1x LC1724 LCD KVM Switch
- 1x Power Cord (Regional)
- 2x Mounting Rails
- 24x USB KVM dongles (CM-1200U)
- 1x Quick Start Guide
- 1x Cat5e Shield Network Cable
- 1x Ground Lead
Model
| LC1724 |
Computer connections | Direct | 24 |
Max | 768 |
Port emulation | Keyboard, mouse | PS/2, USB |
LCD monitor | LCD model | SXGA TFT |
View area | 17″ |
Optimum resolution | 1280×1024@60Hz |
Display color | 16.7 M |
Brightness | 250cd/m²( T y p ) |
Contrast ratio | 1000 : 1 ( T y p ) |
Pixel pitch(mm) | 0.264(H) × 0.264(W) |
Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
Touchpad with scroll wheel | Eliminates the need for an external mouse |
Keyboard | 99 keys (82 keys main keyboard +17 independent small number pad) |
Port selection | Front panel pushbuttons, hotkeys, On-Screen Display (OSD) |
Input power | 100V- 240Vac, 50-60Hz, <1.5A |
Power consumption | 21W |
Operating temperature | 0 — 50 ℃ |
Store temperature | -20 — 60 ℃ |
Humidity | 0~80% RH, non-condensing |
Net weight | 13kg |
Product dimension (W × D × H) | 448mm×581mm×42.5mm |
Package dimension (W × D × H) | 765mm×615mm×185mm |
Optional power input | -36V~ -72V DC |
