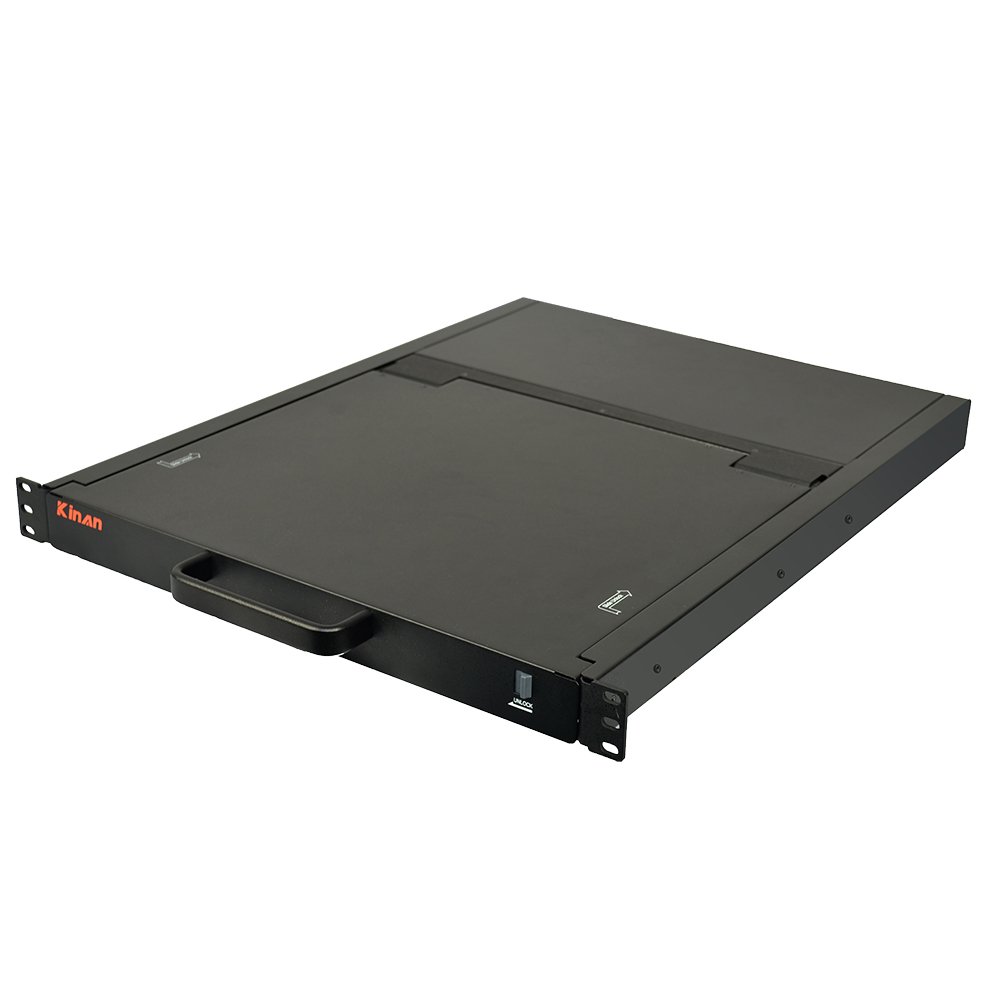

LC1916 : Kinan Single Rail 19” 16 Port CAT5 LCD KVM Switch

คุณสมบัติสินค้า:

[ LC1916 ] รีวิว จำหน่าย ราคา Kinan รุ่น LC1916 คือ 19" LCD KVM Switch ที่มี Port RJ-45 ที่สามารถเชื่อมต่อได้สูงสุดถึง 16 - Port เป็นแบบชนิดรางเดี่ยว

หมวดหมู่ : KINAN LCD KVM Consoles

แบรนด์ : KINAN

Share

คุณสมบัติย่อ

KINAN KVM SWITCH รุ่น LC1916: สวิตช์ KVM 16 พอร์ต ขนาด 19 นิ้ว พร้อมจอ LCD แบบ Single Rail ด้วยการเชื่อมต่อ CAT5 สำหรับควบคุมเครื่องคอมพิวเตอร์ รวมเป็นหน่วยเดียวกัน ใช้งานสะดวก ครบวงจร ควบคุมได้รวดเร็ว ใช้ใน Data Center และ Server Room ได้อย่างมีประสิทธิภาพ ทนทานต่อการใช้งาน และสามารถป้องกันภัยคุกคามได้เป็นอย่างดี



Hardware Features

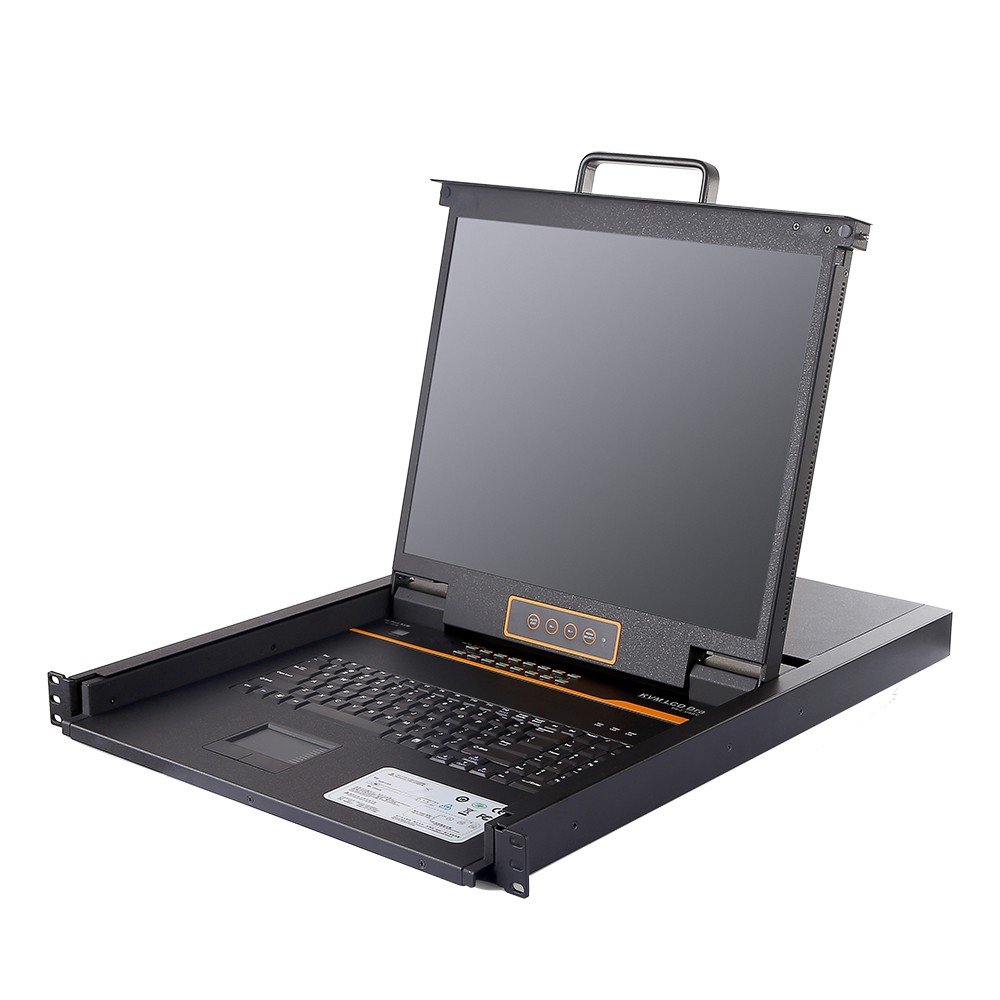

  • Integrated console kvm switch with 19” LCD display, keyboard/touchpad and 16 port Cat5 KVM switch in a 1U height console

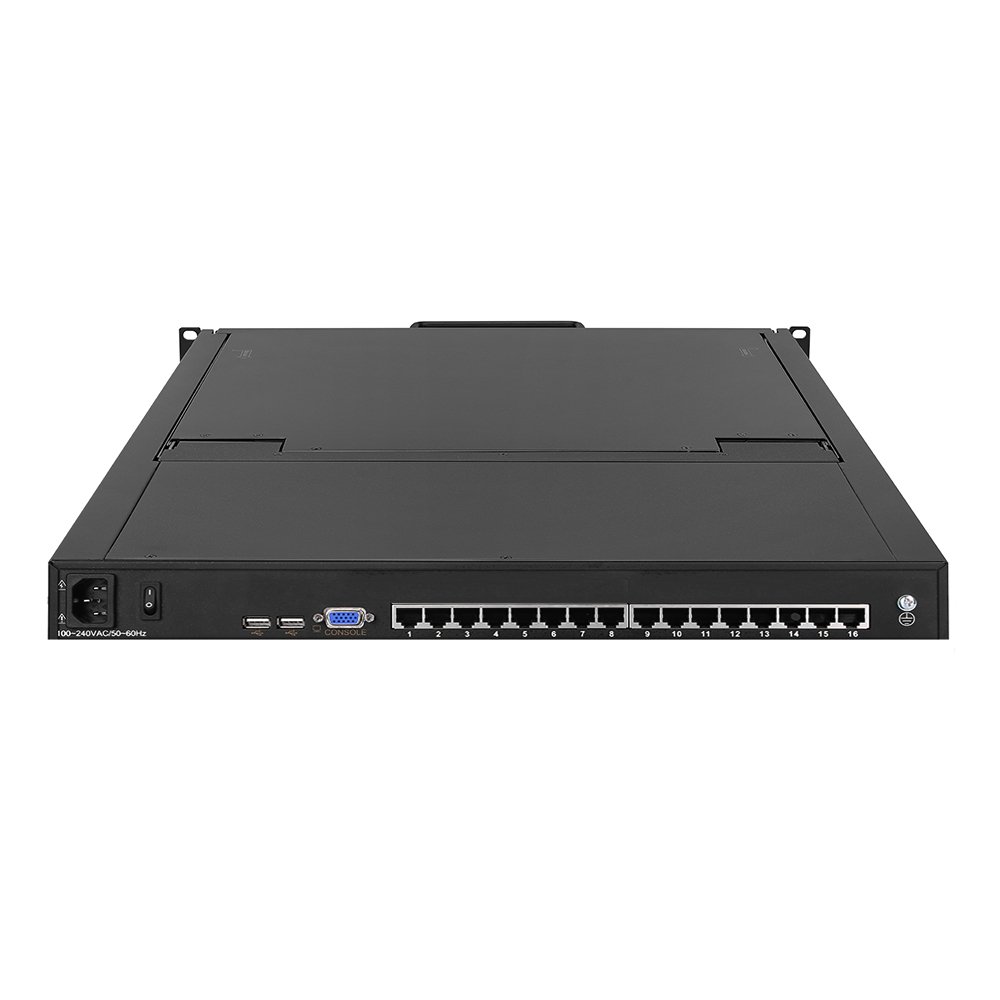

  • Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB keyboard and mouse

Management

  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode--operations simultaneously performed on all selected computers
  • Hot pluggable --add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator

High Resolution

  • 19” TFT LCD monitor with highlight, high definition and high resolution
  • Resolution is up to 1280 x 1024 @60Hz

Cascading Connection

  • By cascading up to another 31 switches, as many as 512 servers can be controlled from a single console (Compatible Kinan Rack KVM Switches: KC2108, KC2116, KC2132)

Security

  • Two level password security--only authorized users view and control computers
  • Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

  • Touchpad with scroll wheel - Eliminates the need for a separate, external mouse

Keyboard
  • Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
  • Full size 99 keys keyboard with integrated number pad


Wide Compatibility

  • Wide Compatibility Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน




ในชุดอุปกรณ์ประกอบไปด้วย

  • 1x LC1916 LCD CAT5 KVM Switch
  • 1x Power Cord (Regional)
  • 2x Mounting Rails
  • 16x USB KVM dongles (CM-1200U)
  • 1x Quick Start Guide
  • 1x Cat5e Shield Network Cable
  • 1x Ground Lead


Model
LC1916
Computer connectionsDirect16
Max512
Port emulationKeyboard, mousePS/2, USB
LCD monitorLCD modelSXGA TFT
View area19″
Optimum resolution1280×1024@60Hz
Display color16.7 M
Brightness250cd/m²( T y p )
Contrast ratio1000 : 1 ( T y p )
Pixel pitch(mm)0.2928(H) × 0.2928(W)
MouseX/Y resolution>1000 points / inch, (40 points/mm)
Touchpad with scroll wheelEliminates the need for an external mouse
Keyboard99 keys (82 keys main keyboard +17 independent small number pad)
Port selectionFront panel pushbuttons, hotkeys, On-Screen Display (OSD)
Input power100V- 240Vac, 50-60Hz, <1.5A
Power consumption21W
Operating temperature0 — 50 ℃
Store temperature-20 — 60 ℃
Humidity0~80% RH, non-condensing
Net weight13.4kg
Product dimension (W × D × H)448mm×605mm×42.5mm
Package dimension (W × D × H)765mm×615mm×185mm
Optional power input-36V~ -72V DC
