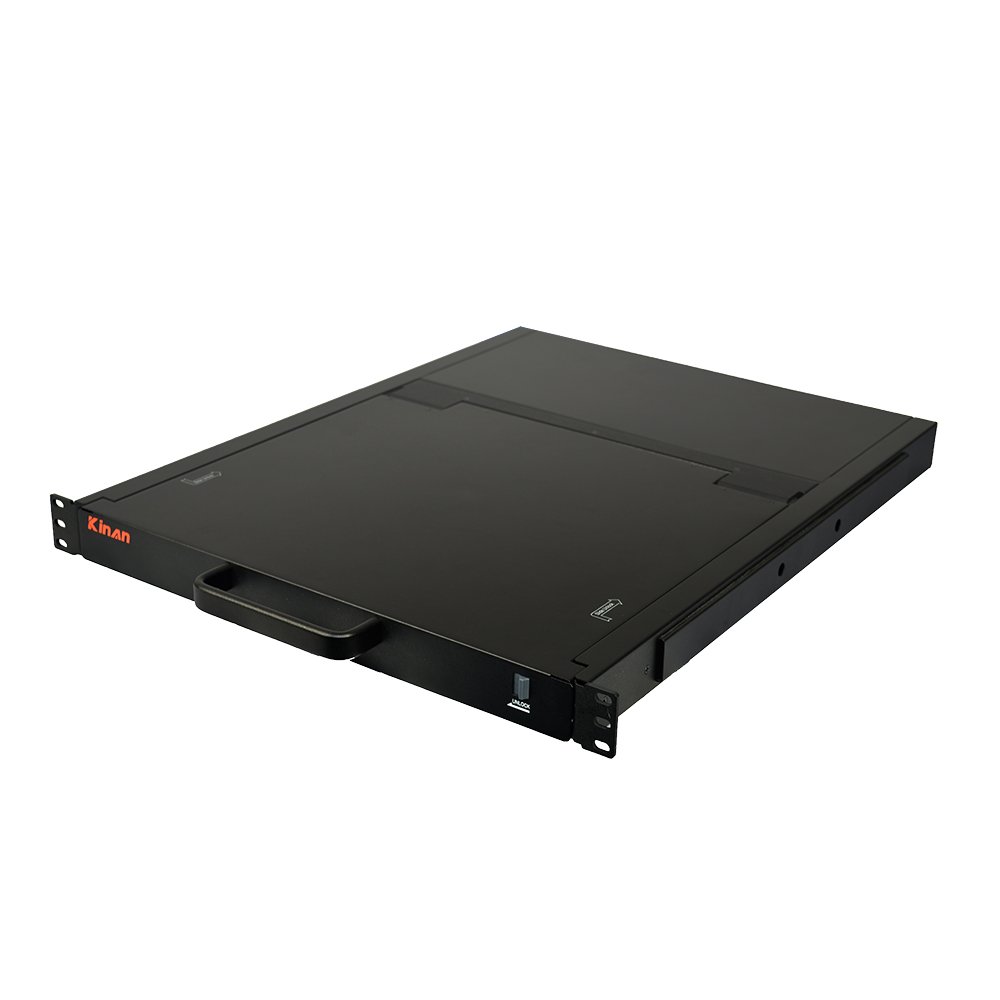

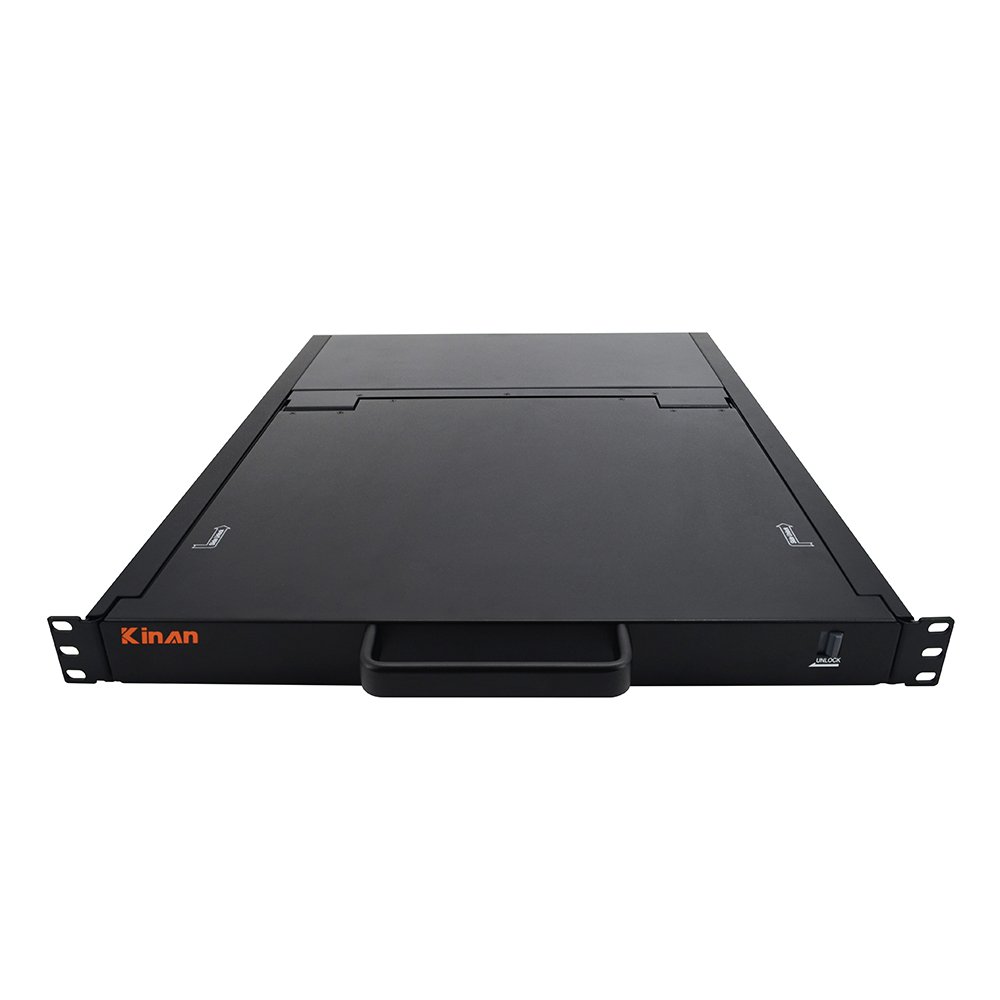

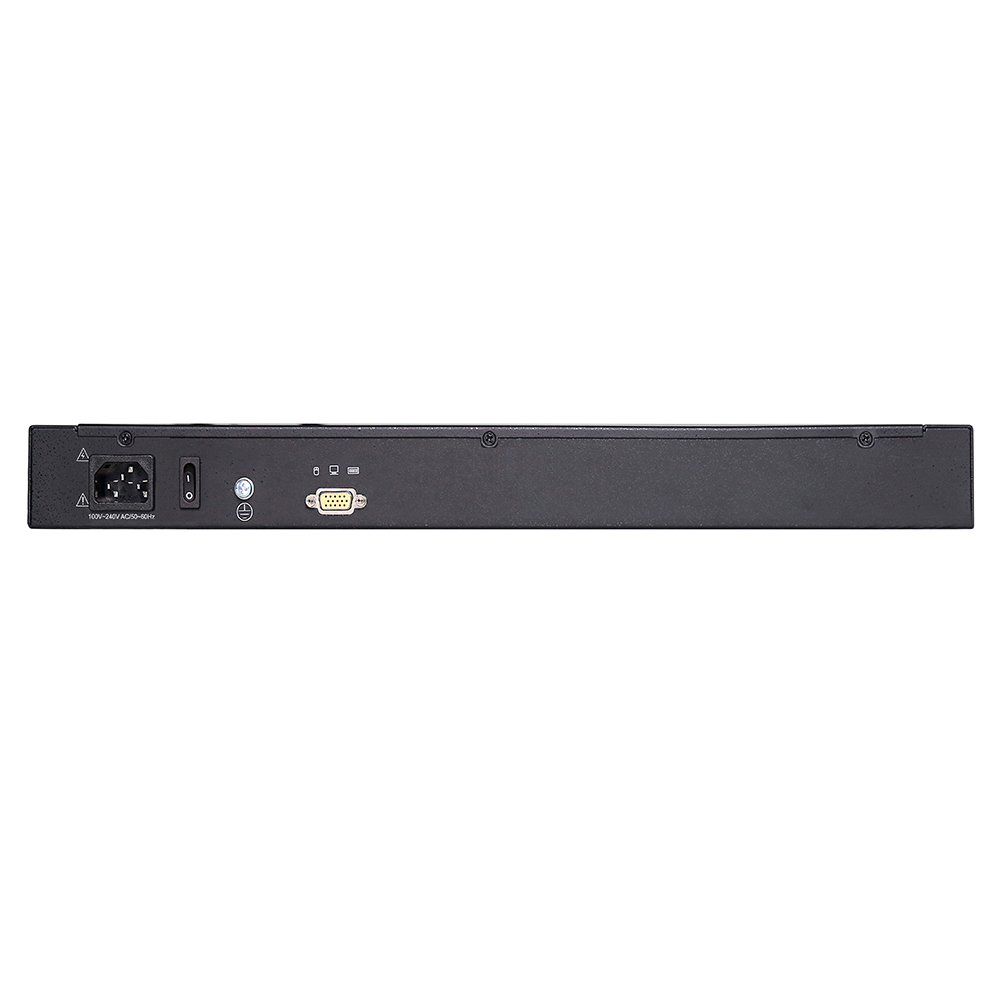

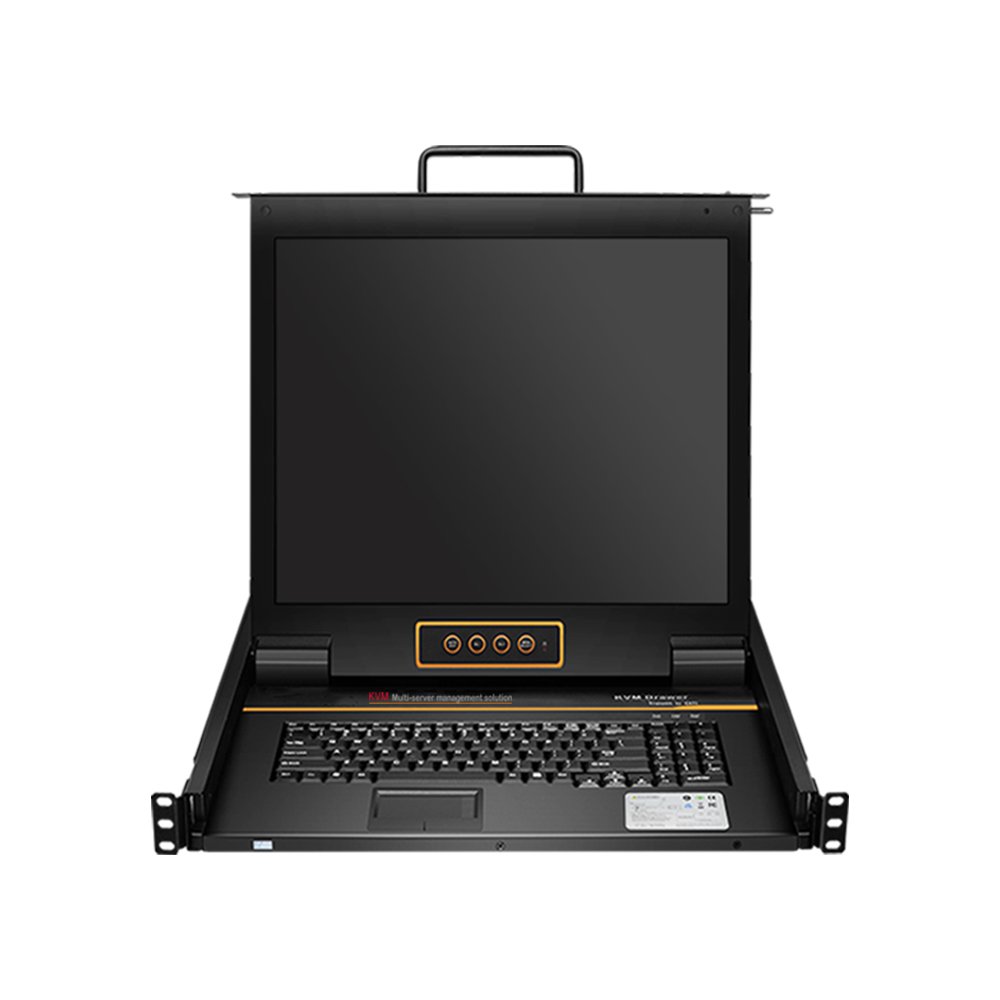

LS2701 : Kinan 17"1 Port VGA Rack LCD Console

คุณสมบัติสินค้า:

[ LS2701 ] รีวิว จำหน่าย ราคา Kinan LS2701: จอLCD 17" พร้อม KVM 1 พอร์ต VGA, ออกแบบเพื่อจัดการเครือข่ายระดับมืออาชีพ ประหยัดพื้นที่ในการทำงาน

หมวดหมู่ : KINAN LCD KVM Consoles

แบรนด์ : KINAN

Share

คุณสมบัติย่อ

ขอต้อนรับสู่วิธีการจัดการเครือข่ายที่เรียบง่ายและมีประสิทธิภาพด้วย Kinan 17" 1 Port VGA Rack LCD Console (LS2701) ที่ช่วยให้คุณสามารถควบคุมและติดตามเครือข่ายของคุณอย่างมืออาชีพ จอแสดงผล LCD ขนาด 17 นิ้วช่วยให้คุณเห็นภาพชัดเจน ในขณะที่พอร์ต VGA เดียวช่วยลดความยุ่งยากในการเชื่อมต่อ อีกทั้งยังเพิ่มความสะดวกสบายในการใช้งานและประหยัดพื้นที่ ณ สถานที่ติดตั้งอีกด้วย


Hardware Features

  • Integrated KVM Console with 17 LCD monitor, keyboard/touchpad
  • Standard VGA connection-Connect to a server or computer via standard VGA connector
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 port
  • Internal power supply

High Resolution
  • 17 TFT LCD KVM with monitor supports highlight, high definition and high resolution
  • Support input video resolutions up to 1280 x 1024 @60Hz


High Performance Touchpad

  • Touchpad with scroll wheel - Eliminates the need for a separate, external mouse

Keyboard
  • Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
  • Full size 99 keys keyboard with integrated number pad


Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
  • Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.



ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน



ในชุดอุปกรณ์ประกอบไปด้วย

  • 1x LS2701 LCD Console
  • 1x Power Cord (Regional)
  • 2x Mounting Rails
  • 1x KVM Cable (CH-1802U; VGA, USB; 1.8m/6ft)
  • 1x Quick Start Guide


ModelLS2701
Computer ConnectionsDirect1
Max1
Port emulationKeyboard, mousePS/2, USB
LCD monitorLCD modelSXGA TFT
View area17 "
Optimum resolution1280×1024@60Hz
Display color16.7 M
Brightness250cd/m² (T y p)
Contrast ratio1000: 1 (T y p)
Pixel pitch(mm)0.264(H) × 0.264(W)
MouseX/Y resolution>1000 points / inch, (40 points/mm)
Touchpad with Scroll wheelSupport scroll wheel function
Keyboard99 keys
(82 keys main keyboard + 17 independent small numeric keyboard)
Input power100V-240Vac, 50-60Hz, <1.5A
Power consumption13W
Operating temperature0— 50 ℃
Store temperature-20 — 60 ℃
Humidity0~80% RH, non-condensing
Net weight11.7 kg
Product dimension (W × D × H)448mm×481mm×42.5mm
Package dimension (W × D × H)765mm×615mm×185mm
