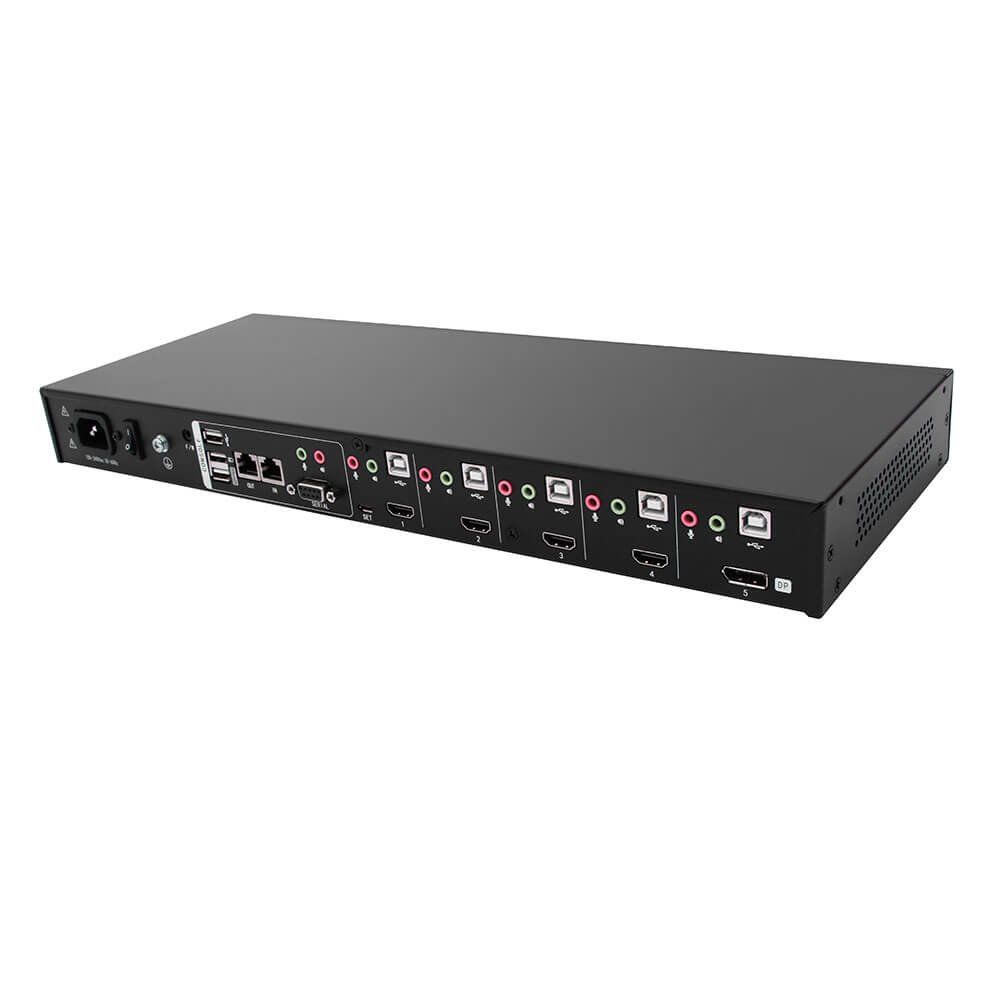

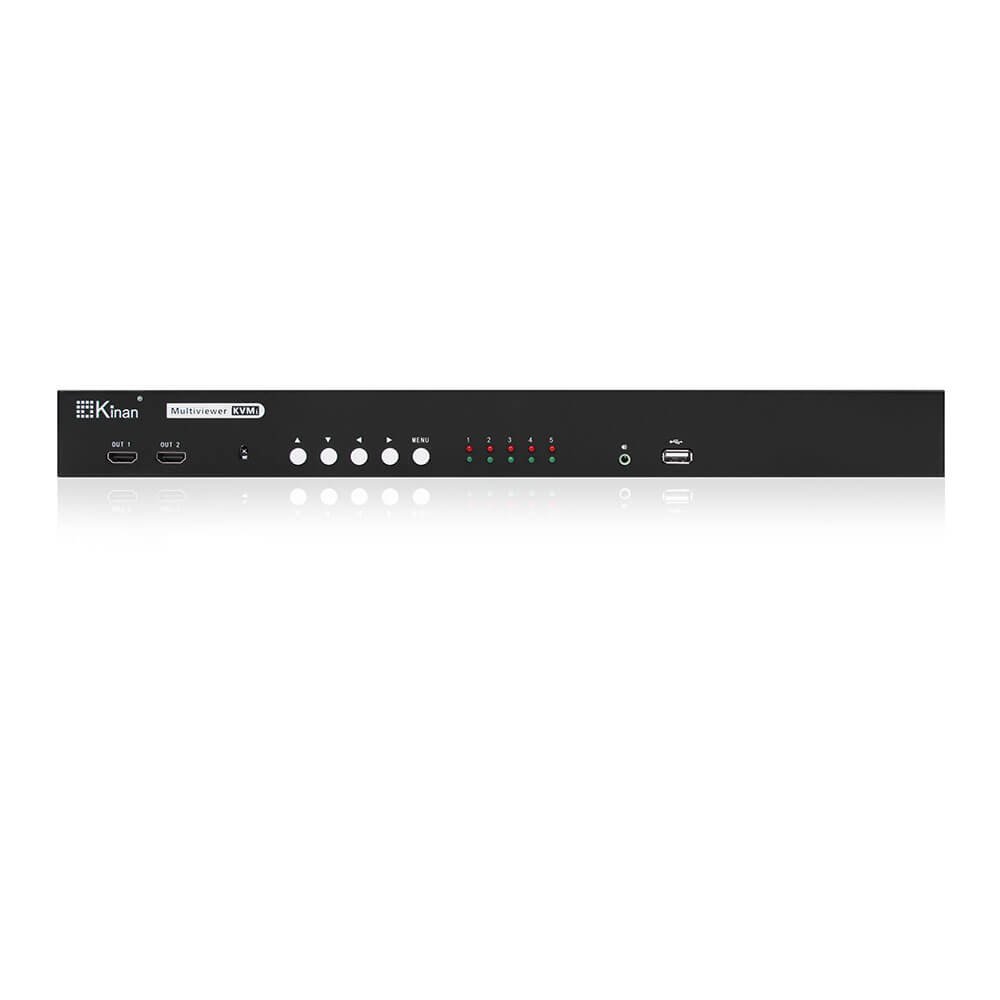

*MH2415 : Kinan 5 Port USB HDMI Multi-View KVM Switch

• A single multi-view console controls up to 5 video sources on one screen
• Support display modes including Quad View, Triple View, Dual View, Full Screen, and Picture in Picture (PiP)

• Supports dual output on console side – a multi-view output and a full screen output

Superior Video Quality

• Supports HDMI digital display-fully compatible with HDMI2.0 and HDCP, whether it is in single-screen mode or multi-screen mode, resolutions of all window view up to 4K (3840×2160 60Hz), YCbCr4:4:4



Boundless switching

• Boundless switching in the multi-screen mode – simply move the mouse cursor across windows and switch automatically

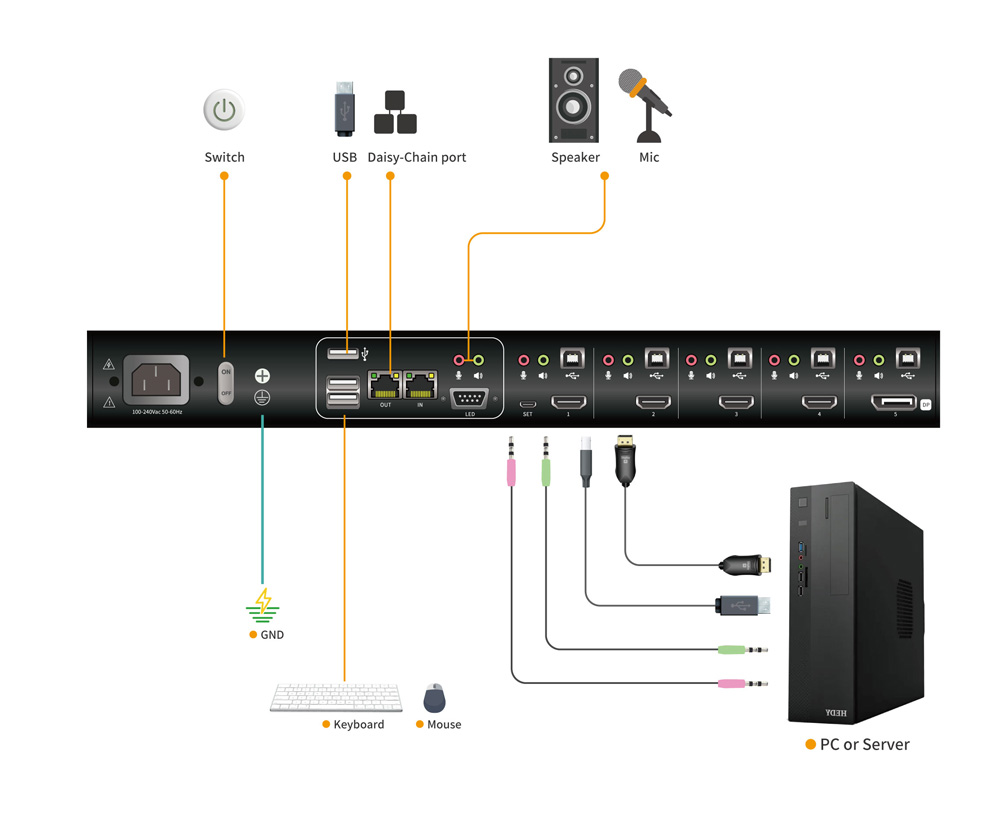

Daisy Chain & Cascade Connection

• In a daisy chain setup, you can control and monitor up to 10 computers via a single set of keyboard and mouse
• In a cascade setup, you can control and monitor up to 20 computers (4 additional MH2415 Switches) using a single console


USB 2.0 Hub

• Supports USB2.0 Hub, allowing each computer to access connected peripherals



Audio Enabled

• Supports PCM2, 5.1, 7.1 channel, Dolby 5.1 and DTS5.1 audio output and Mic input


Wide Compatibility

• Mulit-platform compatible – Windows, Linux, Mac, Unix



ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน

ในชุดอุปกรณ์ประกอบไปด้วย

• 1x MH2415 Mluti-View HDMI KVM Switch

• 5x USB Cable (USB type A female, USB type B female; 1.5m)

• 5x 3.5mm audio cable (1.5m)

• 6x HDMI cable (1.5m)

• 1x DisplayPort cable (1.5m)

• 1x USB to DB9 serial cable (1m)

• 1x Power Cord

• 1x Ground Lead

• 2x Mounting rails

• 1x Quick Start Guide

• 1x User Manual
