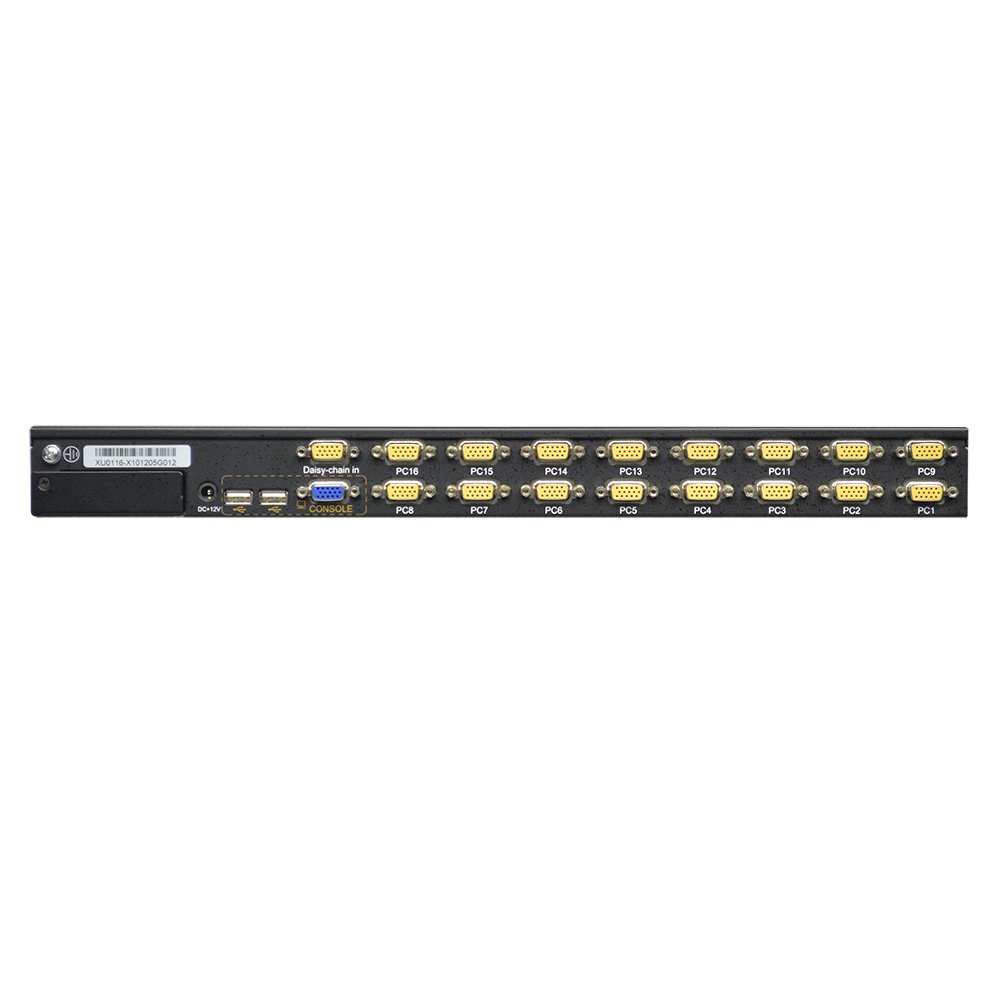

*XU0116 : Kinan Rack Mount 16 port USB VGA KVM Switch

คุณสมบัติย่อ



Hardware Features

• 1U design-Occupies only 1U of the rack space

• Standard VGA connection-Connect to a server or computer via standard VGA connectors

• Fit for standard 19” rack mounting

• Support computers with USB keyboard and mouse



• Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
• Auto scan feature for monitoring user-selected computer
• Broadcast mode--operations simultaneously performed on all selected computers
• Hot pluggable --add or remove computers without having to power down the switch
• Quickly select your computer by naming the server or inputting SN number of the server

• Resolution is up to 2048×1536 DDC2B

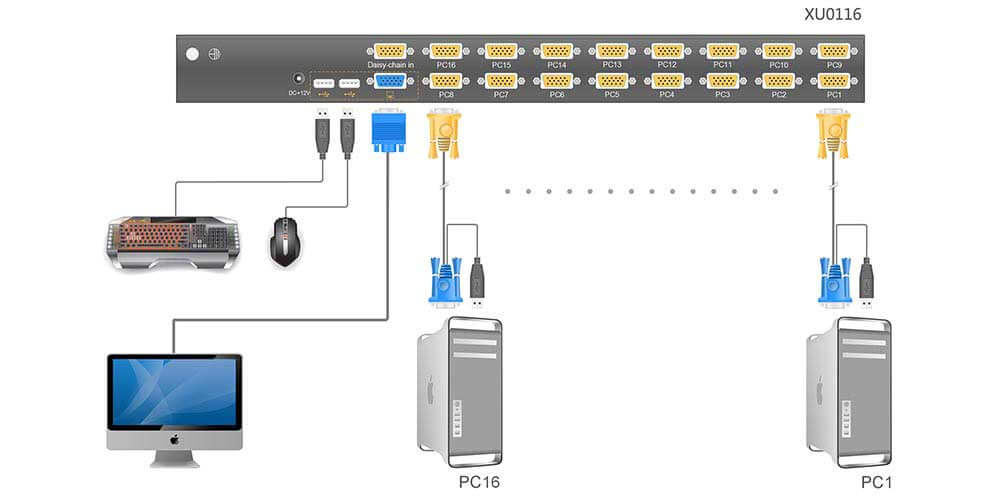

• Directly access and control up to 16 servers with single XU0116
• By cascading to 31 additional switches, as many as 512 computers can be controlled from single XU0116

• Two level password security--only authorized users view and control computers
• Supports one administrator and four user accounts with a separate profile for each

• Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
• Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

ในชุดอุปกรณ์ประกอบไปด้วย

• 1x XU0116 Rackmount KVM Switch

• 1x Power Cord (Regional)

• 1x Power Adapter

• 2x Mounting Rails

• 16x USB KVM Cable (CH-1802U; VGA, USB; 1.8m/6ft)

• 1x Quick Start Guide
