*HT5816 : Kinan 18.5"16 Port CAT5 LCD KVM over IP Switch 1-Local / 2-Remote Access


หมวดหมู่ : KINAN KVM over IP Switches

แบรนด์ : KINAN



Hardware Features

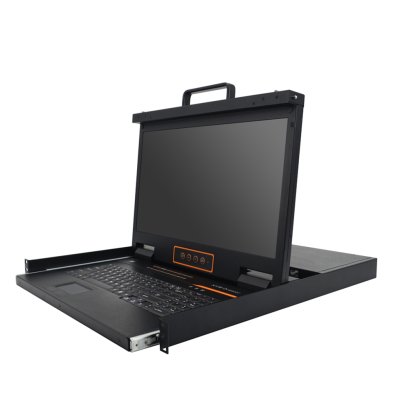

  • Integrated IP KVM 16 port with 18.5” LCD monitor, keyboard/touchpad in a 1U height console
  • Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • External console port – provides an external VGA, keyboard and mouse port to manage the KVM from an external console
  • Two bus for IP KVM remote control
  • Dual power supply

Local Console
  • Control up to 16 computers from a single console

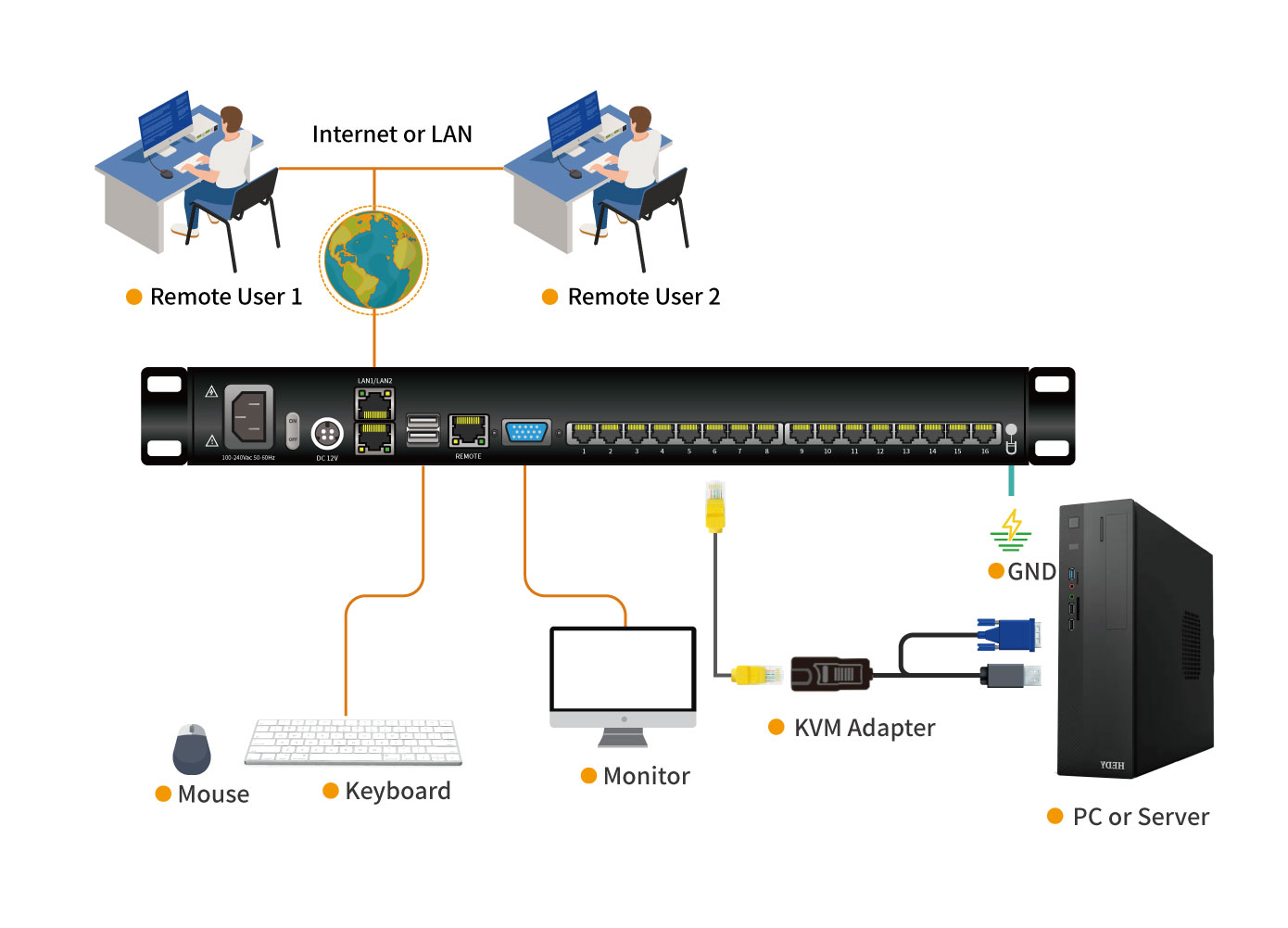

  • Support 1 local user and 2 remote users, port share mode allows local and remote users to gain access to a server simultaneously
  • Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
  • Support servers with VGA/HDMI/DVI/DP port
  • Multiplatform client support - Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
  • Support a graphical interface for intuitive and convenient human-computer interaction- local resolution is up to 1366 x 768@60Hz
  • Supports mouse synchronization mode-automatically synchronizes the local and remote mouse movements
  • Video synchronization with local console - EDID information for local console display can be stored in the host module for video resolution optimization
  • Keyboard and mouse emulation to ensure the normal booting
  • Auto scan feature for monitoring user-selected computer
  • Hot pluggable – add or remove computers without having to power down the switch

Remote Console
  • Adaptive 10 / 100 / 1000 Mbps network
  • WEB browser-based or KVM_Clients remote management
  • BIOS-level access
  • Video quality and video tolerance can be adjusted to optimize data transfer speed, up to 30 FPS
  • Resolutions up to 1920 x 1080@60Hz on remote screen
  • Full screen or scalable video display
  • Remote users and local users can control the same server synchronously
  • Support AES / DES / 3DES encryption
  • Support audit function-allows the administrator to audit the device through the system log and operation log
  • Support low-bandwidth real-time transmission, the bandwidth is less than 2M
  • Exit Macros support
  • Configurable user and group permissions for server access and control
  • Supports firmware upgrade

ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน



  • 1x HT5816 CAT5 LCD KVM over IP Switch
  • 1x Power Cord (Regional)
  • 1x Quick Start Guide
  • 1x User Manual
  • 2x Mounting Rails
  • 16x USB KVM Adapter (KCM-1200U)
  • 1x Cat5 shield network cable
  • 1x Ground Lead


Computer ConnectionsDirect16
Port SelectionKeyboard, MouseButton, UI, Web, Hotkey
LCD MonitorModelWXGA TFT
View Area18.51"
Optimum Resolution1366×768@60Hz
Color16.7 M (Typ)
Brightness250 cd/m² (Typ)
Contrast Ratio1000: 1
Pixel Pitch(mm)0.300(H) × 0.300(W)
MouseX/Y Resolution>1000 points / inch, (40 points/mm)
Scroll WheelSupports Scroll Wheel function
Keyboard99 keys (82 keys main keyboard +17 independent small numeric keyboard)
RemoteRemote ControlKVM Control (A9ctiveX)
SecurityDES Encrypted
Power Input100V- 240Vac, 50-60Hz, <1.5A
Mounting distance686-770mm (L=262mm)
Mounting bracket can be customized for other mounting distance
Power Consumption31W
Operating Temperature0 — 50 ℃
Store Temperature-20 —60 ℃
Humidity0—80% RH, non-condensing
Net Weight11.7kg
Product Dimension (W × D × H)448mm × 560mm × 42.5mm
Package Dimension (W × D × H)765mm × 615mm × 185mm
