*HT5932 : Kinan 19＂32 Port CAT5 LCD KVM over IP Switch 1-Local / 2-Remote Access

คุณสมบัติย่อ



Hardware Features

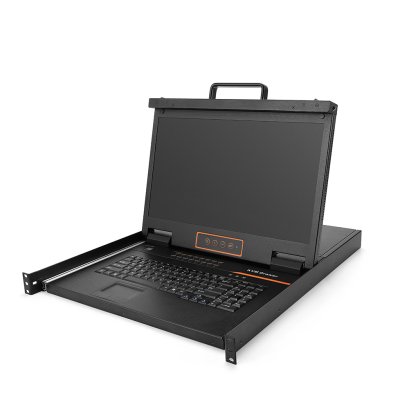

• Integrated KVM console with 19” LCD monitor, keyboard/touchpad in a 1U height console

• Standard Cat5 connection-Connect to a server or computer via standard RJ-45 connectors and Cat5e/6 cables

• LCD module can be opened up to 108 degrees to provide a comfortable viewing angle

• External console port – provides an external VGA, keyboard and mouse port to manage the KVM monitor from an external console

• Two bus for IP KVM switch remote access

• Dual power supply



• Controls up to 32 computers from a single console

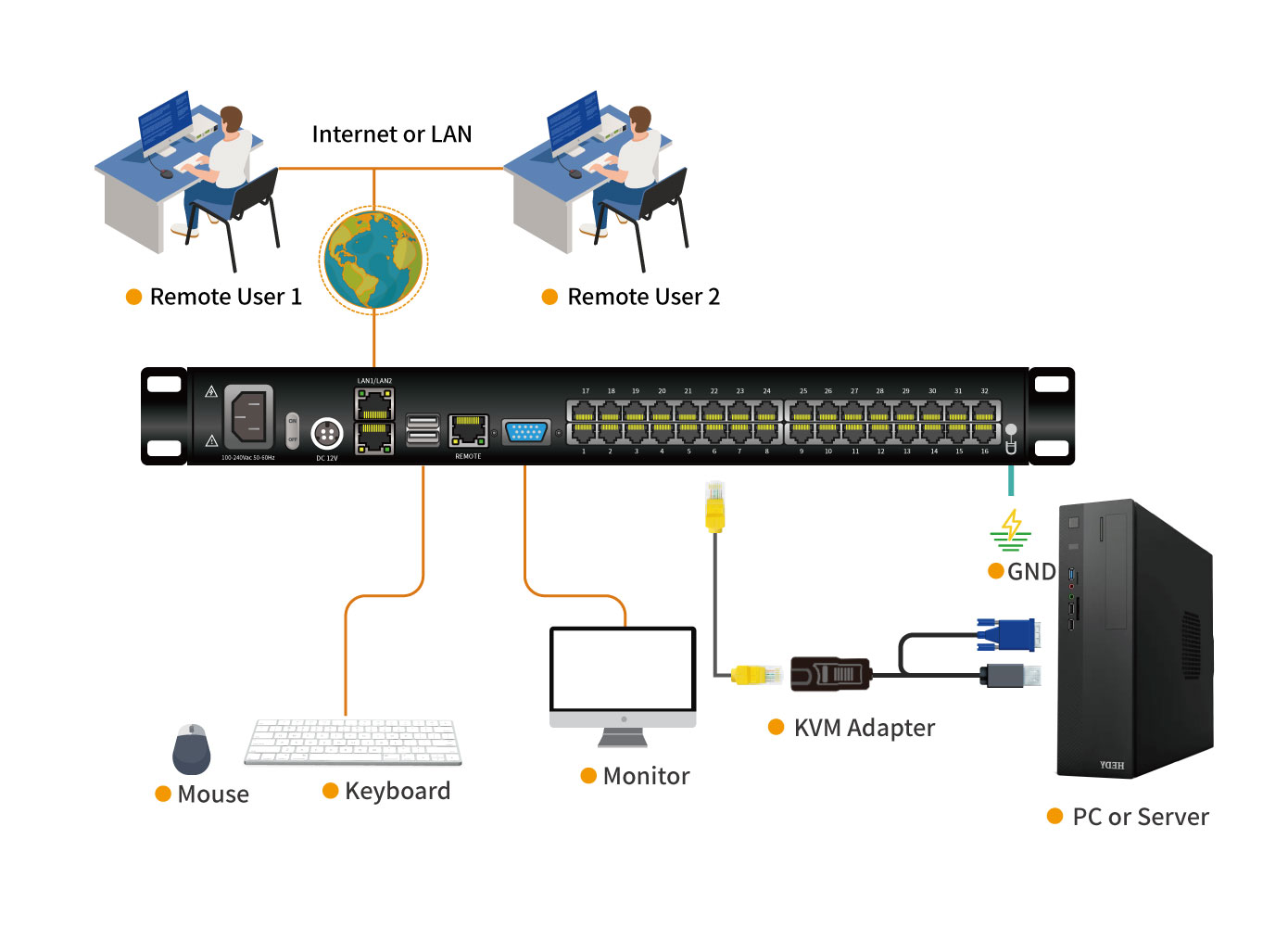

• Support 1 local user and 2 remote users, port share mode allows local and remote users to gain access to a server simultaneously
• Easy-to-use switching by browser-based UI interface, hotkeys and pushbuttons
• Support servers with VGA/HDMI/DVI/DP port
• Multiplatform client support - Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
• Supports a graphical interface for intuitive and convenient human-computer interaction- local resolution is up to 1280 x 1024@60Hz
• Supports mouse synchronization mode-automatically synchronizes the local and remote mouse movements
• Video synchronization with local console - EDID information for local console display can be stored in the host module for video resolution optimization
• Keyboard and mouse emulation to ensure the normal booting
• Auto scan feature for monitoring user-selected computer
• Hot pluggable – add or remove computers without having to power down the switch

Remote Console

• Adaptive 10 / 100 / 1000 Mbps network

• WEB browser-based or KVM_Clients remote management

• BIOS-level access

• Video quality and video tolerance can be adjusted to optimize data transfer speed, up to 30 FPS

• Resolutions up to 1920 x 1080@60Hz on remote screen

• Full screen or scalable video display

• Remote users and local users can control the same server synchronously

• Support AES / DES / 3DES encryption

• Support audit function-allows the administrator to audit the device through the system log and operation log

• Support low-bandwidth real-time transmission, the bandwidth is less than 2M

• Exit Macros support

• Configurable user and group permissions for server access and control

• Supports firmware upgrade



ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน

ในชุดอุปกรณ์ประกอบไปด้วย

• 1x HT5932 LCD KVM over IP Switch
• 1x Power Cord (Regional)
• 1x Quick Start Guide
• 1x User Manual
• 2x Mounting Rails
• 32x USB KVM Adapter (KCM-1200U)
• 1x Cat5 shield network cable
• 1x Ground Lead
