*SW1731 : Kinan Rack Mount 17in Widescreen LCD KVM Console (HDMI / DVI / VGA)
คุณสมบัติสินค้า:
หมวดหมู่ : KINAN , LCD KVM Consoles ,
แบรนด์ : KINAN
รายละเอียดสินค้า
Specifications
Datasheet / Downloads
คุณสมบัติย่อ
Hardware Features
- The keyboard, touchpad and 17.3” LCD monitor are integrated in a 1U compact design
- Supports three types of video inputs - HDMI, DVI, and VGA
- All-in-one control of computer, server or KVM Switch
- Quick release tabs-Insert or remove the device with ease
- Multi-language support--English, Russian, German, French, Spanish and Korean, etc.
- Full size 99 keys keyboard with integrated numeric pad
High Performance Touchpad
- Integrated touchpad - Eliminates the need for a separate, external mouse
High Resolution
- 17.3” FHD LCD monitor with highlight, high definition and high resolution
- Resolution is up to 1920 x 1080 @60Hz
Wide Compatibility
- Multi-platform Support-Compatible with Windows, Sun, Unix and Linux
- Supports server form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

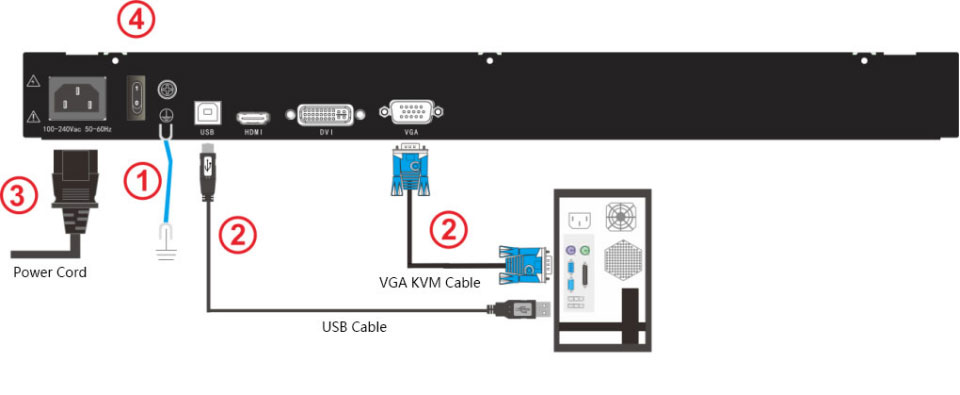

Package Contents
- 1x SW1731 Widescreen LCD KVM Console
- 1x Power Cord (Regional)
- 2x Mounting Rails
- 1x USB Cable (1.5m/5ft)
- 1x VGA KVM Cable (1.5m/5ft)
- 1x Quick Start Guide
ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน
ในชุดอุปกรณ์ประกอบไปด้วย
- 1x SW1731 LCD KVM Console
- 1x Power Cord (Regional)
- 2x Mounting Rails
- 1x USB Cable (1.5m/5ft)
- 1x VGA KVM Cable (1.5m/5ft)
- 1x Quick Start Guide
Model | SW1731 | |
Computer connections | Direct | 1 |
Max | 1 | |
Port emulation | Keyboard, mouse | PS/2, USB |
LCD monitor | LCD model | FHD TFT |
View area | 17.3" | |
Optimum resolution | 1920×1080@60Hz | |
Display color | 262K | |
Brightness | 300cd/m² (T y p) | |
Contrast ratio | 800: 1(T y p) | |
Pixel pitch(mm) | 0.1989(H) × 0.1989(W) | |
Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) |
| Scroll wheel | Support scroll wheel function | |
Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) | |
| Video Inputs | HDMI, DVI, VGA | |
Input power | 100V-240Vac, 50~60Hz, <1.5A | |
Power consumption | 13W | |
Operating temperature | 0—50 ℃ | |
Store temperature | -20—60 ℃ | |
Humidity | 0—80% RH, non-condensing | |
Net weight | 11.7 kg | |
Product dimension (W × D × H) | 448mm×525.6mm×42.5mm | |
Package dimension (W × D × H) | 765mm×615mm×185mm | |
