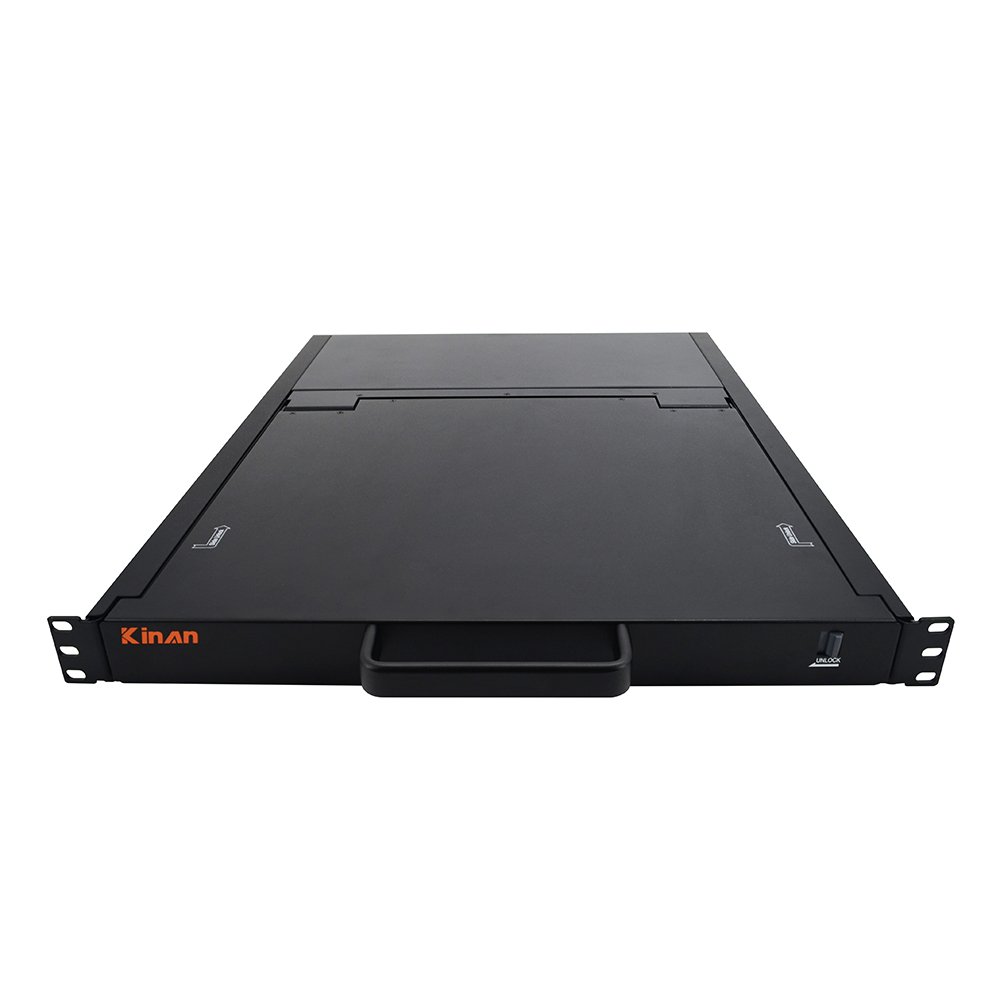

*LS3701 : Kinan 1U Rack Mount Console with 17in. LCD (DVI / VGA)
คุณสมบัติสินค้า:
หมวดหมู่ : KINAN , LCD KVM Consoles ,
แบรนด์ : KINAN
รายละเอียดสินค้า
Specifications
Datasheet / Downloads
คุณสมบัติย่อ
Hardware Features
- The keyboard, touchpad and 17” LCD monitor are integrated in a 1U compact design
- Supports two types of video inputs - DVI, VGA
- All-in-one control of computer, server or KVM Switch
- Quick release tabs-Insert or remove the device with ease
- Multi-language support--English, Russian, German, French, Spanish and Korean, etc.
- Full size 99 keys keyboard with integrated numeric pad
High Performance Touchpad
- Integrated touchpad - Eliminates the need for a separate, external mouse
High Resolution
- 17” TFT LCD monitor with highlight, high definition and high resolution
- Resolution is up to 1280 x 1024 @60Hz
Wide Compatibility
- Multi-platform Support-Compatible with Windows, Sun, Unix and Linux
- Supports server form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

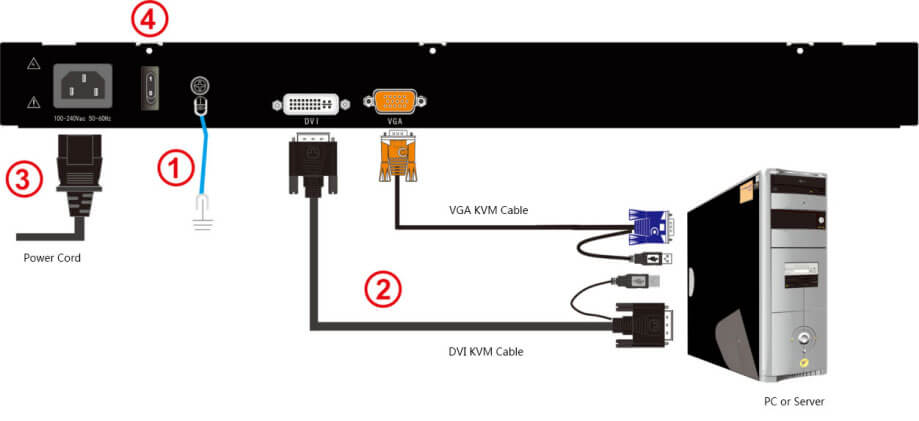

Package Contents
- 1x LS3701 LCD KVM Console
- 1x Power Cord (Regional)
- 2x Mounting Rails
- 1x USB+VGA KVM Cable (1.8m/6ft)
- 1x USB+DVI KVM Cable (1.8m/6ft)
- 1x Quick Start Guide
ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน
ในชุดอุปกรณ์ประกอบไปด้วย
- 1x LS3701 LCD KVM Console
- 1x Power Cord (Regional)
- 2x Mounting Rails
- 1x USB+VGA KVM Cable (1.8m/6ft)
- 1x USB+DVI KVM Cable (1.8m/6ft)
- 1x Quick Start Guide
Model | LS3701 | |
Computer connections | Direct | 1 |
Max | 1 | |
Port emulation | Keyboard, mouse | PS/2, USB |
LCD monitor | LCD model | SXGA TFT |
View area | 17″ | |
Optimum resolution | 1280×1024@60Hz | |
Display color | 16.7 M | |
Brightness | 250cd/m²（ T y p ） | |
Contrast ratio | 1000: 1 (T y p) | |
Pixel pitch(mm) | 0.264(H) × 0.264(W) | |
Mouse | X/Y resolution | >1000 points /inch, (40 points/mm) |
| Scroll wheel | Support scroll wheel function | |
Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) | |
| Video Inputs | DVI, VGA | |
Input power | 100V-240Vac , 50-60Hz , <1.5A | |
Power consumption | 13W | |
Operating temperature | 0—50 ℃ | |
Store temperature | -20—60 ℃ | |
Humidity | 0—80% RH, non-condensing | |
Net weight | 11.7 kg | |
Mounting distance | 460~790mm ( L=420mm) Mounting rails can be customized for other mounting distance. | |
Product dimension (W × D × H) | 448mm×481mm×42.5mm | |
Package dimension (W × D × H) | 765mm×615mm×185mm | |
Optional power input | -36V— -72Vdc | |
Optional power input | 20-30Vdc | |
