KVM-1716A : Kinan Single Rail 16-port 17” VGA LCD KVM Switch

คุณสมบัติย่อ

Hardware Features

• One 16 port KVM switch is integrated in 1U height console

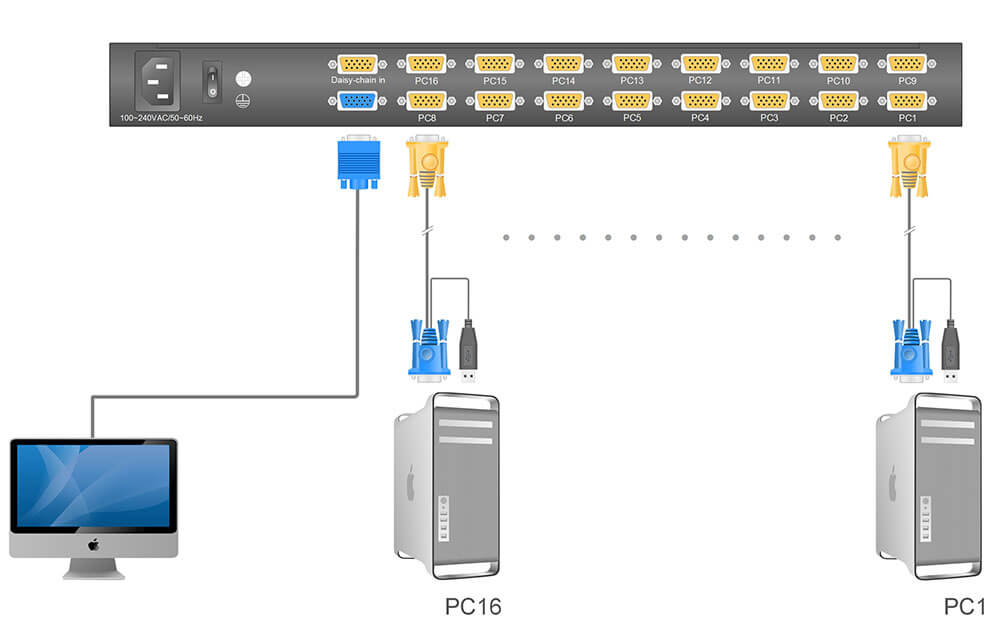

• 16 computers can be controlled from a single monitor-keyboard-mouse console

• Standard VGA connector-Connect to a server or computer via a standard VGA connector

• Quick release tabs-Insert or remove the device with ease



• Touchpad - Eliminates the need for a separate, external mouse

Keyboard

• Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
• Full size 99 keys keyboard with integrated number pad

• Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD) Auto scan feature for monitoring user-selected computer
• Broadcast mode--operations simultaneously performed on all selected computers
• Hot pluggable --add or remove computers without having to power down the switch
• Quickly select your computer by naming the server or inputting SN number of the server
• On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator

• 17” TFT LCD monitor with highlight, high definition and high resolution
• Resolution is up to 1280 x 1024 @60Hz

• Directly access and control up to 16 servers with single KVM-1716A
• By daisy-chaining to another 31 switches, as many as 512 servers can be controlled

• Two level password security--only authorized users view and control computers
• up to four users and an administrator with a separate profile for each

• Multi-platform Support-Compatible with Windows, Sun, Unix and Linux
• Supports server form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.

ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน

ในชุดอุปกรณ์ประกอบไปด้วย

• 1x KVM-1716A LCD KVM Switch
• 1x Power Cord (Regional)
• 2x Mounting Rails
• 16x KVM Cable (CH-1802U; VGA, USB; 1.8m/6ft)
• 1x Quick Start Guide
