DL2916 : Kinan 16-Port Cat5 Dual Rail LCD KVM Switch with 19 in. LCD


[ DL2916 ] รีวิว จำหน่าย ราคา Kinan รุ่น DL2916 คือ 19" LCD KVM Switch ที่มี Port RJ-45 ที่สามารถเชื่อมต่อออกไปได้สูงสุดถึง 16-Port เป็นแบบชนิดรางคู่

หมวดหมู่ : KINAN LCD KVM Consoles

แบรนด์ : KINAN



Hardware Features

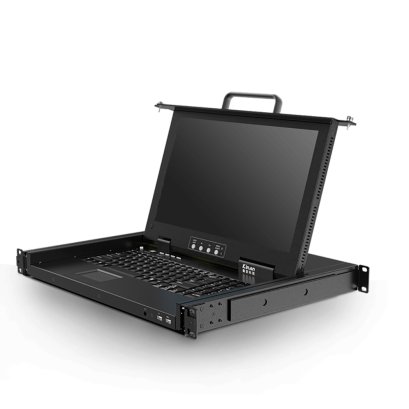

  • Integrated rack console drawer with 19" LCD display, keyboard and touchpad in a dual rail housing

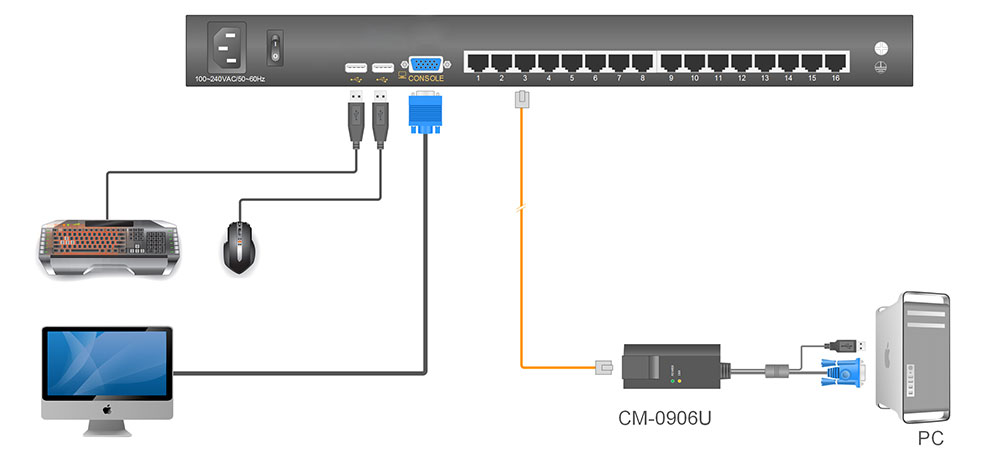

  • Connect to a server or computer via a standard RJ-45 connector with CAT 5e/6 cable
  • LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
  • Support computers with USB and PS/2 keyboard and mouse
  • The LCD monitor and keyboard/touch pad modules slide independently of each other

Dual Rail Design

  • The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack, allowing administrators to easily manage computer.


  • Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
  • Auto scan feature for monitoring user-selected computer
  • Broadcast mode--operations simultaneously performed on all selected computers
  • Hot pluggable --add or remove computers without having to power down the switch
  • Quickly select your computer by naming the server or inputting SN number of the server
  • On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator

High Resolution

  • 19" TFT LCD monitor with highlight, high definition and high resolution
    Resolution is up to 1280x1024@60Hz

Cascading Connection

  • By cascading up to another 31 switches, as many as 512 servers can be controlled from a single console (Compatible Kinan Rack KVM Switches: KC2108, KC2116, KC2132)


  • Two level password security--only authorized users view and control computers
    Supports one administrator and four user accounts with a separate profile for each

High Performance Touchpad

  • Touchpad with scroll wheel - Eliminates the need for a separate, external mouse


  • Multi-language support--English, Russian, German, French, UK and Spanish, etc.
    Full size 99 keys keyboard with integrated number pad

Wide Compatibility

  • Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
    Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.


ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน


  • 1x DL2916 LCD KVM Switch
  • 1x Power Cord (Regional)
  • 2x Mounting Rails
  • 16x USB KVM dongles (CM-1200U)
  • 1x Quick Start Guide
  • 1x Cat5e Shield Network Cable
  • 1x Ground Lead


Computer connectionsDirect16
Port emulationKeyboard, mousePS/2, USB
LCD monitorLCD modelSXGA TFT
View area19 "
Optimum resolution1280×1024@60Hz
Display color16.7 M
Brightness250cd/m² (T y p)
Contrast ratio1000: 1 (T y p)
Pixel pitch(mm)0.2928(H) × 0.2928(W)
MouseX/Y resolution>1000 points / inch, (40 points/mm)
Touchpad with scroll wheelEliminates the need for an external mouse
Keyboard99 keys
(82 keys main keyboard +17 independent small numeric keyboard)
Port selectionPushbuttons, hotkeys, OSD menu, mouse
Input power100V – 240Vac, 50 ~ 60Hz, <1.5A
Power consumption21W
Operating temperature0 – 50 ℃
Store temperature-20 – 60 ℃
Humidity0 – 80% RH, non-condensing
Net weight13.8 kg
Product dimension (W × D × H)448mm×605mm×43.5mm
Package dimension (W × D × H)765mm×615mm×185mm
Optional power input-36V– -72V DC
