คุณสมบัติย่อ
Hardware Features
- Integrated 1u kvm with 19" LCD monitor, keyboard and touchpad in a dual rail housing
- Connect to a server or computer via a standard RJ-45 connector with CAT 5e/6 cable
- LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
- Support computers with USB and PS/2 keyboard and mouse
- The LCD monitor and keyboard/touch pad modules slide independently of each other

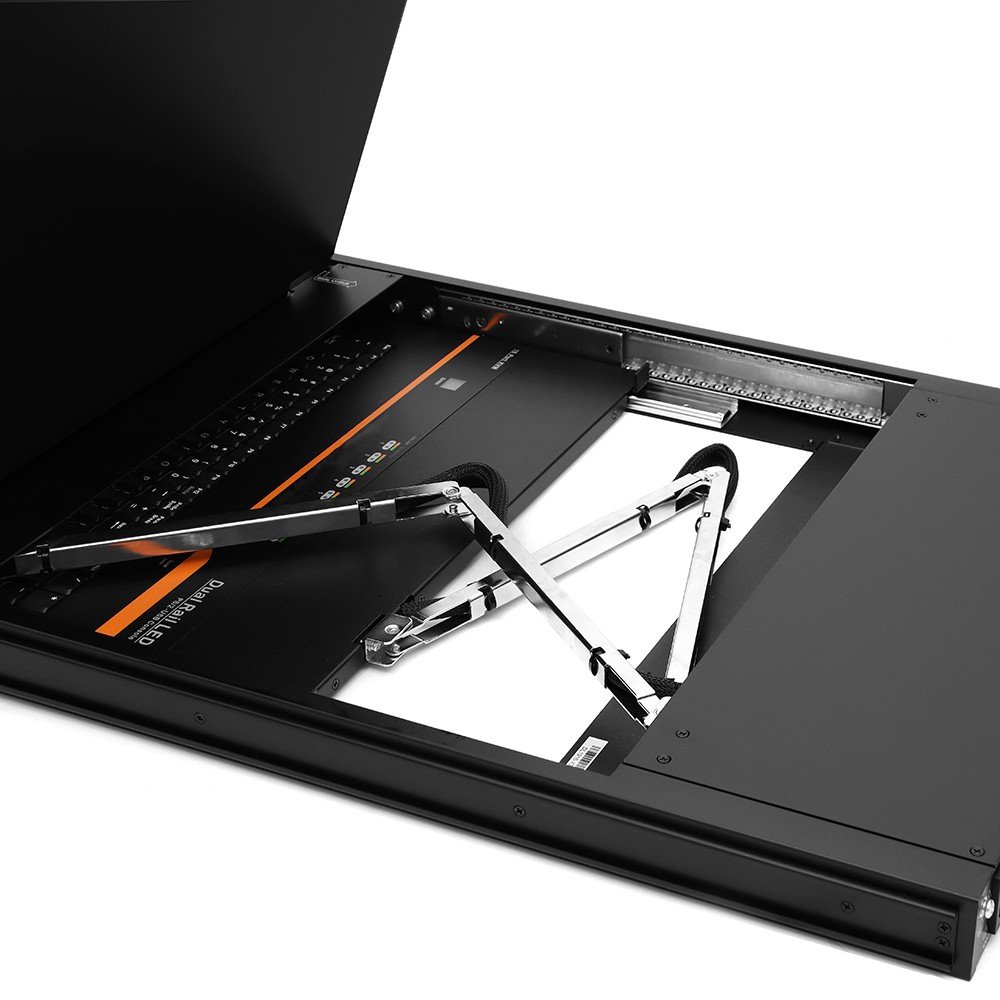

Dual Rail Design
- The LCD panel and keyboard/touchpad modules slide independently of each other, the keyboard/touchpad module slides back to “hide away” when not in use, while the thin profile LCD monitor rotates back, flush against the rack, allowing administrators to easily manage computer.
Management
- Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
- Auto scan feature for monitoring user-selected computer
- Broadcast mode--operations simultaneously performed on all selected computers
- Hot pluggable --add or remove computers without having to power down the switch
- Quickly select your computer by naming the server or inputting SN number of the server
- On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator
High Resolution
- 19" TFT rackmount LCD monitor with highlight, high definition and high resolution
Resolution is up to 1280 x 1024 @60Hz
Cascading Connection
- By cascading up to another 31 switches, as many as 1024 servers can be controlled from a single console (Compatible Kinan Rack KVM Switches: KC2108, KC2116, KC2132)
Security
- Two level password security--only authorized users view and control computers
Supports one administrator and four user accounts with a separate profile for each
High Performance Touchpad
- Touchpad with scroll wheel - Eliminates the need for a separate, external mouse
Keyboard
- Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
Full size 99 keys keyboard with integrated number pad
Wide Compatibility
- Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc.
ข้อมูลโดยละเอียดสามารถศึกษาได้จาก Datasheet ที่แถบเมนู Download ที่อยู่ด้านบน

ในชุดอุปกรณ์ประกอบไปด้วย
- 1x DL2932 LCD KVM Switch
- 1x Quick Start Guide
- 1x Power Cord (Regional)
- 1x Cat5e Shield Network Cable.
- 2x Mounting Rails
- 1x Ground Lead
- 32x USB KVM dongles (CM-1200U)
Model | DL2932 |
Computer connections | Direct | 32 |
Max | 1024 |
Port emulation | Keyboard, mouse | PS/2, USB |
LCD monitor | LCD model | SXGA TFT |
View area | 19 " |
Optimum resolution | 1280×1024@60Hz |
Brightness | 250cd/m² (T y p) |
Contrast ratio | 1000: 1 (T y p) |
Pixel pitch(mm) | 0.2928(H) × 0.2928(W) |
Mouse | X/Y resolution | >1000 points / inch, (40 points/mm) |
Touchpad with scroll wheel | Eliminates the need for an external mouse |
Keyboard | 99 keys (82 keys main keyboard +17 independent small numeric keyboard) |
Port selection | Pushbuttons, hotkeys, OSD menu, mouse |
Input power | 100V – 240Vac, 50 ~ 60Hz, <1.5A |
Power consumption | 23W |
Operating temperature | 0 – 50 ℃ |
Store temperature | -20 – 60 ℃ |
Humidity | 0 – 80% RH, non-condensing |
Net weight | 14 kg |
Product dimension (W × D × H) | 448mm×605mm×43.5mm |
Package dimension (W × D × H) | 765mm×615mm×185mm |
Optional power input | -36V– -72V DC |
